Product Details:
Payment & Shipping Terms:
|
| Weight: | 175g | Dimension: | 41mm X 31mm X 29mm |
|---|---|---|---|
| Power Consumption: | 3.5W | POE: | Opitional |
| Power Supply: | DC12V | Operation Temperature: | -10°C - +50°C |
| Installation: | ATM Machine | Lens: | 3.7mm |
| High Light: | hidden surveillance camera,covert IP camera |
||

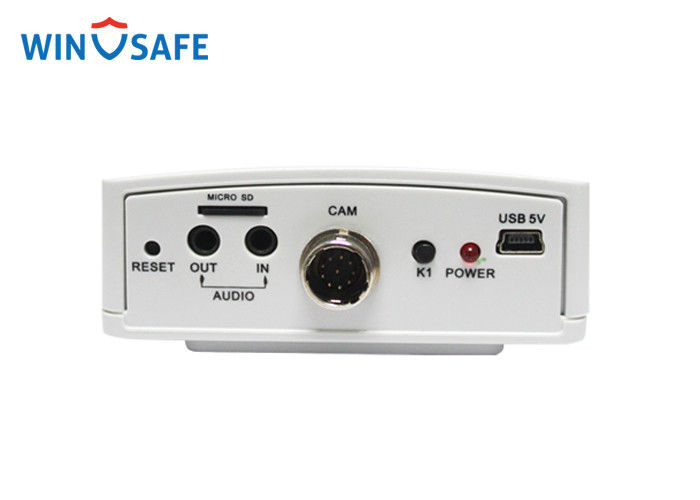

Wireless IP Hidden Camera Motion Detector , Covert Wifi IP Camera 2 Megapixels
Feature
※ 1/3" SONY Exmor Sensor Progressive Scan,1.3MP;
※ Support static IP(IP address,subnet mask,gateway and DNS setting available);
※ Support PPPOE, RTSP, VLC, NTP,UPNP;
※ Streaming switchable(Audio streaming or video streaming);
※ Support Image adjustable(Brightness, contrast, hue, saturation);
※ Support VBR nad CBR, VBR setting;
※ 3D DNR, D-WDR, Antifog, Antistemble;
※ PoE optional;
※ 5 user IE viewing in the same time,4 mask zone;
※ 4CH multiscreen play back in the same time.
Specification
| Model | WS-IP315 | |||
| Hardware | ||||
| SOC | Hi3518A | |||
| Pick-up Device | 1/3" Sony progressive scan EXMOR CMOS,1.3Megapixel | |||
| Effective Pixel | 1280(H) x 1024(V) | |||
| Interface | ||||
| Optical Lens | Interfaces | Pinwhole 3.7mm/4.5mm | ||
| Iris | N/A | |||
| Focal Length | N/A | |||
| Audio Talkback | 1 CH 3.5mm AV interface | |||
| Audio Output | 1 CH 3.5mm AV interface | |||
| Network Interface | Lan | 10/100M BASE-TX, RJ-45 connector | ||
| RS485 | RS485 port optional | |||
| Alarm I/O | 1ch Alarm input or 1ch alarm output | |||
| Memory Slot | Micro SD Card slot, Max 32GB | |||
| Audio & Video encoding | ||||
| Video Compression | H.264 Main Profile; MJPEG Baseline | |||
| Resolution | Main Stream | 1280*1024/1280*960/1280*720; 1-25fps(Adjust) | ||
| Mub Stream | 720*576/640*480/640*352/352*288/320*240;1-25fps(Adjust) | |||
| Video Bitrate | 30Kbps -- 16Mbps, Supports CBR/VBR | |||
| Title OSD Settings | Support channel name, date, and video stream information overlay | |||
| OSD location is adjustable | ||||
| Privacy Mask | 4 configurable regions | |||
| Image Orientation | Image Flip and Mirror | |||
| Auto Image Control Functions | Auto Exposure Control(AEC); Auto White Balance(AWB);Auto Gain Control(AGC) | |||
| Manual Image Controls | Color saturation, hue, gamma, sharpness(edge enhancement) | |||
| Others | Anti Fogging/Anti Trembling/IR Detection/IRIS | |||
| Audio Compression | G.711A/G.711I/G.726 | |||
| Two Way Audio | Support | |||
| Date Transmission and Storage | ||||
| Date Storage | Video and Image | |||
| Recording | Recording set up to record by Auto or manual(motion and alarm trigger, schedule) | |||
| Alarm Output | FTP, E-Mail | |||
| Network Protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP, UPNP |
|||
| Wireless product(-W) | N/A | |||
| ONVIF protocol | Support 2.2 version | |||
| Remote View | PC | IE 6.0 Above, firefox, google chrome | ||
| Mobile Phone | Support Windows Mobile, Symbian, iPhone, Android system | |||
| Max.User Access | 5 users | |||
| General Parameters | ||||
| Environmental Casing | Aluminum alloy housing, Indoor Use | |||
| Installation | Different bracket optional | |||
| Operation Temp. | - 10 °C -- 50°C | |||
| Operation Humidity | 0% -- 85%RH | |||
| Power Supplier | DC12V | |||
| POE | Optional | |||
| Power Consumption | ||||
| Dimension | L3.8mm x W2.3mm x H2.3mm(Camera) & L90mm x L110mm x H30mm(function box) | |||
| Weight | 350g | |||
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
