IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom

IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom
IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom

Large Image :  IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: AC3-S3002N-IR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5 - 8 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000PCS/Month
Detailed Product Description
Active Pixel: 1920(H) X 1080(V) Signal System(SD): PAL / NTSC
White Balance: Auto Focus: Auto / Manual
Optical Zoom: 20X / 30X Digital Zoom: 12X
IR Wave Length: 850nm IR Distance: 60M
High Light:

mobile ptz camera

,

rugged surveillance camera


IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom



Features

※ 1/2.8” CMOS, 2.13MP, 30X/20X optical zoom;
※ Network video maximum support 1080P30;
※ Support CVBS standard clear video output;
※ Support H.265, H.264 video compression, support dual stream;
※ Support multi level video quality configuration;
※ ONVIF & RTSP Compliant;
※ Efficient 60m IR distance;
※ Wide dynamic range, ICR day/night;
※ Digital image stabilization;
※ Soft PTZ address, protocol and baud rate self-adpative;
※ Waterproof index: IP66;
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.


Technical Specification

Model No.AC3-S2008N-IRAC3-S3002N
Camera
Image Sensor1/2.8" Progressive Scan CMOS,2.13MP
Active Pixel1920(H) x 1080(V)
Signal Sytem(NET)HD:1080p30 / 1080p25 / 720p60 / 720p50 / 720p30 / 720p25
Signal System(SD)PAL / NTSC
Min.IlluminationColor: 0.0013Lux; B/W:0.0008Lux
White BalanceAuto
FocusAuto / Manual
ExposureAuto / Manual
S/N RatioNote less than 50 Db
BLCOn / Off
WDROn / Off
Digital Noise Reduction1 - 5Steps/OFFOn/Off
Digital Image StabilizationNo
Day/NightAuto / Manual
Lens
Optical Zoom20X30X
Digital Zoom12X
Lensf=4.7mm - 94mmf=4.3mm - 129mm
IRISF1.6 - F3.5F1.6 - F4.7
View Angle59.5° (wide) to 3.3° (tele)63.7° (wide) to 2.3° (tele)
PTZ
Pan Range360° Continuous
Pan Speed0.1° - 60°/s, adjustable, Preset Speed: 60°/s
Tilt Range- 15 ° - 90° with auto flip
Tilt Speed0.2° - 60°/s, adjustable, Preset Speed:60°/s
Preset Number256
Preset Precision±0.2°
IR Light
IR Wave Length850nm
Range60m
SwitchAuto / Manual
Network
Image Resolution1920 x 1080@30fps
Image CompressionH.264, H.265
Audio CompressionAAC
ProtocolHTTP, RTSP, TCP, UDP, ONVIF
No.of User AccessUp to 10
Dual StreamSupport
Interface
Audio Interface1 Line in, 1 Line out
Video Output(SD)CVBS1.0V(p-p)/75Ω PAL or NTSC(optional)
Ethernet InterfaceRJ45, 10/100M
Comm. InterfaceRS-485
General
OSD LanuageEnglish
Address0 - 255
Comm.ProtocolPELCO-P / PLECO-D(self-adaptive)
Protocol2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
VoltageDC 10.8 - 28V
PowerMin: 9W; Max: 20W
Working Temperature-35°C - +65°C
IP CodeIP66
DimensionsStandard(Without Damper): Φ136(mm) x 185(mm)
WeightStandard(Without Damper): 2.1(±0.2)kg

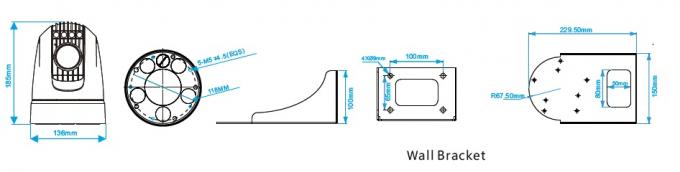

Dimensional Drwing

IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom 0

IP Network Car Roof Mobile IP66 Waterproof PTZ Camera 30X / 20X Optical Zoom 1
