IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight

China IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight supplier
IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight supplier IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight supplier

Large Image :  IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: AMC-A2001N

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
OSD Menu: Yes Digital Zoom: 12X
Optical Zoom: 20X Preset Number: 256
Color: Grey Interface: RJ45,100M
Weight: 1.7kg Video Output: HD-SDI

IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight

A high quality HD-SDI PTZ cameras that can output up to 1080p60. Ideal for any event where one camera needs to capture several locations. Can be controlled with pre-sets and included remote control or via an optional joystick controller. IP control available.

Easy to Set Up, Operate and Control

Simple pan, tilt, zoom functions and one touch presets.

Easy to Mount: Comes with a standard mounting hole. Use with tripod, ceiling or wall mount. All 1 Beyond PTZ cameras have image flip and can be mounted upside down if needed.

Standard Controls: Remote control with included handheld IR remote, joystick or Crestron/Extron control system over RS-232/485. PTZ-IP cameras are controllable with software over IP using HTTP, RTP, TCP, UDP, or ONVIF.

Over 265 Presets: Instead of manually operating the camera, you can have set combinations of pan, tilt, zoom (presets) and call them with different buttons on your control. The camera will automatically move to the pre-set point.

Feature

※ H.265 video compression, dual stream
※ Compatible with ONVIF, RTSP, RTMP protocols
※ 2.14MP, 1/2.8" CMOS
※ Support up to 1080p60 and other video formats via SDI interface
※ With OSD menu
※ With HD-SDI interface
※ 1 audio input and 1 audio output
※ New design of PTZ mechanism with higher precision and reliability, presetting precision up to ± 0.01°
※ Support standard VISCA & Pelco communication prococls
※ With IR remote controller
※ Has image flip function for stand and suspended installation
※ Desktop, ceiling, wall and pendant mounting options

Technical Specification


Model No.AMC-E200T
Tracking Camera
Image Sensor1/2.8" Exmor CMOS, 2.14MP
Focal3.9mm - 46.8mm
IRISF1.6 - F2.8
ZoomOptical: 12X, Digital: 12X
Field of View72.5° - 6.3°
FocusAuto, Manual, PTZ Trigger AF, One push
Min.Illumination0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed1/1 - 1/10,000s
AGCAuto/Manual
S/N RatioAbove 50dB
White BalanceAuto, Indoor, Outdoor, One push, Manual, Auto Track
AE ControlAuto, Manual, Shutter Priority, Iris priority
Full View Camera
Image Sensor1/2.8" CMOS
Effective Pixel2.14MP
White BalanceAuto
ExposureAuto
LensManual Fixed Focus
Field of ViewHorizontal: 86°; Vertical: 52°
Focus2.4mm
Pan & Tilt
Pan Range-170° - +170°
Tilt Range-30° - +90°
Pan Speed0.1° - +120°/s
Tilt Speed0.1° - +90°/s
Preset Number256
Control InterfaceRS-232/RS-485/USB3.0
EthernetRJ45, 100M
Control ProtocolPELCO-D / VISCA / UVC
Network
Image Resolution1920 x 1080 @ 60fps
Video CompressionH.264
Audio CompressionAAC
ProtocolRTMP / RTSP / TCP / UDP / ONVIF
Dual streamSupport
Simultaneous UsersUp to 10 users
Video Interface3G-SDI / DVI-D / USB3.0
Video Format1080p60/1080p50/1080p30/1080p25/1080i60/1080i50/720p60/720p50
General
Power SupplyDC12V
Working Temp0°C - +40°C
Storage Temp-20°C - +60°C
Dimension243mm x 145mm x 263mm
Weight1.2KG
ColorGrey

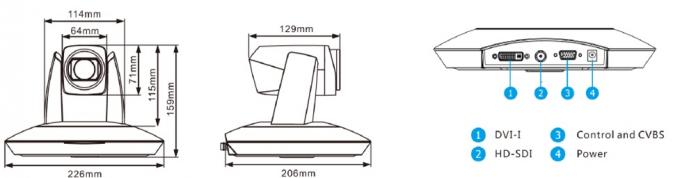

Dimensional Drawing



IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight

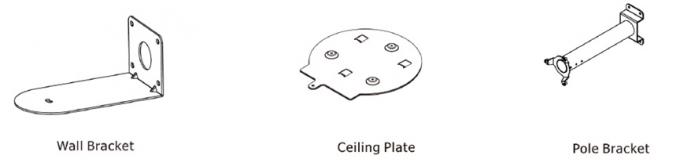

Accessories


IP AMC Grey Full HD PTZ Camera , 1080P Video Conferencing Equipment Lightweight
