USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom

China USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom supplier
USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom supplier USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom supplier

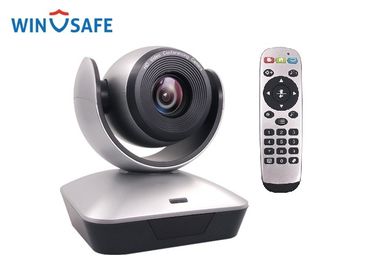

Large Image :  USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: UHV-5X-U3S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral Packing
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Sensor: 1/2.8" Inch High Quality, SONY CMOS Sensor, 2.1MP View Angle: 85°
Focal Length: F=3.1 - 15.5mm Mininum Lux: 0.1Lux
Control Port: RS232(Sony Visca), USB3.0(UVC1.5 Protocol) Video Port: USB3.0(YUY2 Format)
Zoom: 5x Optical Zoom + 2x Digital Zoom Pixel: 5MP



USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom





Specification



Model No. UHV-5X-U3S
Sensor 1/2.8" inch high quality, SONY CMOS sensor, 2.1MP
Video System USB 3.0 mode: 1920 x 1080p@60/50/30/25, 1280x720p@60/50/30/25
USB 2.0 mode: 1024x576@25, 960x540@30 , 640x360@30 , 352x288@30
Zoom 5x optical zoom + 2x digital zoom
View Angle 85°
Focal Length f = 3.1(wide) - 15.5mm(tele)
Minimum Lux 0.1Lux
S/N Rate Above 50dB
Focus Auto/Manual
Iris Auto/Manual
White Balance Auto/Manual/Indor/Outdoor
Electronic Shutter Auto/Manual
Anti Flicker 50Hz/60Hz/OFF
BLC ON/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 contorl, 10 via remote controller
Control Port RS232(Sony Visca), USB3.0(UVC1.5 protocol)
Video Port USB3.0(YUY2 format)
Power DC5V( USB 3.0)/DC12V 1A(Power Adapter)
OSD Menu Enligh/Chinese
Camera Size 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm
Pacage content Camera, Rs232 cable, 3M USB3.0 Cable, power supply
Net Weight 0.8KG





Dimensions(mm)









USB3.0 RS232HD Video Conference Camera , Mini Size Ptz video conferencing Camera 5X Optical Zoom



Features:



Adopted advanced ISP,1/2.8" inch SONY sensor



※ Provide 1920x1080p30(YUY2) high definition, crystal clear image without noise but with realistic color, fantastic depth of filed and full details
※ WDR, 3DNR, BLC, Anti-flicker adjustable via OSD menu for dirrerent environment.



5X Opitcal zoom + 2X Digital zoom, 85° FOV



Using multi-element 5x lossless optical zoom lens, with 85° degree super wide angle FOV, along with 340° pan & 120° tilt rotation at adjustable speed and smooth movement,fast & accurate focus to capture any view in conferencing space



Totally Plug & Play



Video, control and power over single USB 3.0 cable, standard UVC1.5 protocol, works with Windows, Mac OS, Android, Linux.



Flexible Compatibility



Compatible with most leading video conferencing software and platform, Zoom.us, skype 4 business, Viydo, Bluejeans, Polycam, Lifesize, Webex, Google Hangout, Adobe ect, at different operation system Windows, Mac, Android and Linux. And FECC(far-end camera control) supported via the software



RS232/RS485/UVC control



Standard Sony Visca and UVC1.5 protocol, users can control the camera via both RS232(RS485) and USB port.
128 presets through RS232 control and 10 presets by remote controller.
Field upgradable for firmware via RS232 & USB port easily



Multiple Installation Way



Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling.



Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
