Product Details:
Payment & Shipping Terms:
|
| Sensor: | 1/2.8" COMS | Shutter Speed: | 1/1 - 1/10,000s |
|---|---|---|---|
| Focal: | 3.9mm - 46.8mm | Pan Range: | -170° - +170° |
| Tilt Range: | -30° - +90° | Preset Number: | 256 |
| Video Output: | 3G-SDI / DVI-D / USB3.0 | Max Resolution: | 1080P@60fps |
| High Light: | conference room video camera,usb conference room camera |
||

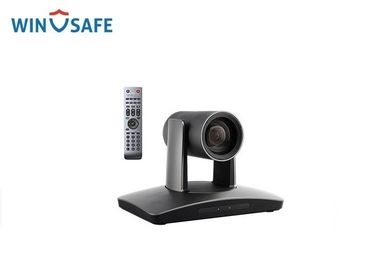

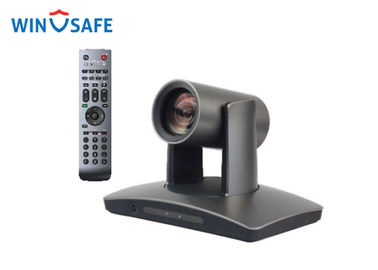

12X Optical Zoom Wireless Microphones Tracking Camera With IR sensor For Broad Room Solution / Meeting Room
Feature
※ Automatically track object(s) holding wireless microphone with IR sensor
※ Precisely & smoothly track with automatic zoom to get suitable size of target
※ There is no need to set or call preset to get the camera tracking
※ Tracking performance fits different size or shape of conference room
※ Ignore interfarence of sunlight, whiteboard or other lighting sources
※ Has HD-SDI, DVI, Ethernet, USB interfaces for easy preview and control
※ 1/2.8" CMOS, 12x optical zoom,72.5° field of viewV
Specification
| Model No. | AMC-E200RV2 |
| Tracking Camera | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Focal | 3.9mm - 46.8mm |
| IRIS | F1.6 - F2.8 |
| Zoom | Optical: 12X, Digital: 12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One push |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/1 - 1/10,000s |
| Gain | Auto/Manual |
| White Balance | Auto, Indoor, Outdoor, One push, Manual, Auto Tracking |
| AE Control | Auto, Manual, Shutter Priority, Iris priority |
| Full View Camera | |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixel | 2.14MP |
| White Balance | Auto |
| Exposure | Auto |
| Lens | Manual Focus |
| Field of View | Horizontal: 68°; Vertical: 41° |
| Pan & Tilt | |
| Pan Range | -170° - +170° |
| Tilt Range | -30° - +90° |
| Pan Speed | 0.1° - +120°/s |
| Tilt Speed | 0.1° - +90°/s |
| Preset Number | 256 |
| Control Interface | RS-232/RS-485/USB3.0 |
| Network | 100M self-adaptive(RJ45) |
| Control Protocol | PELCO-D / VISCA / UVC1.1 |
| HD Video | |
| Video Output | 3G-SDI / DVI-D / USB3.0 |
| Video Format | 1080P60,1080P50,1080P30,1080P25,1080i60,1080i50,720P60,720P50 |
| Network | |
| Resolution | Max support 1920x1080@60fps |
| Video Compression | H.264 |
| Audio Compression | AAC |
| Protocol | ONVIF/RTSP/HTTP/TCP/UDP/RTMP |
| Dual stream | Support |
| Simultaneous Users | Up to 10 users |
| General | |
| Power Supply | DC12V |
| Power Consumption | < 30W |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 243mm x 145mm x 263mm |
| Color | Grey |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
