P2P 4 Channel Wireless1080P IR ONVIF IP Camera NVR Kits with 10.1" Monitor

P2P 4 Channel Wireless1080P IR ONVIF IP Camera NVR Kits with 10.1" Monitor
P2P 4 Channel Wireless1080P IR ONVIF IP Camera NVR Kits with 10.1" Monitor P2P 4 Channel Wireless1080P IR ONVIF IP Camera NVR Kits with 10.1" Monitor

Large Image :  P2P 4 Channel Wireless1080P IR ONVIF IP Camera NVR Kits with 10.1" Monitor

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-NVR4320

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
IR Distance: 10M-20M Camera: 1080P
NVR: 4 Channel Display: 10.1 Inch
Video Compression: H.264 Camera IP Code: IP65
Record Storage: HDD/Network Packing Weight: 6KG
High Light:

IP Surveillance Camera System

,

Wifi Security Camera System

P2P 4 Channel Wireless1080P IR ONVIF IP Camera NVR Kits with 10.1" Monitor/WS-NVR430-20

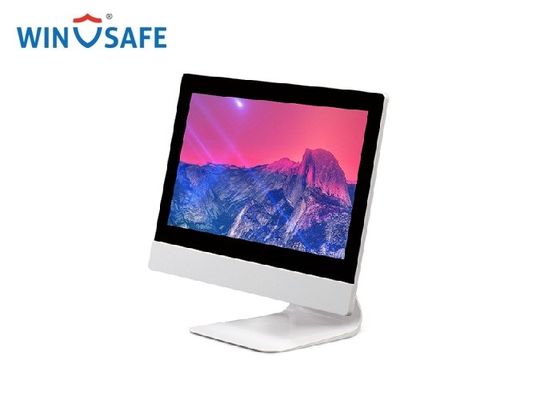

LCD NVR Specification



System Display Size 10.1 inch
Resolution 1024(H) x 600(V)
Lumiannce 250cd/m²
NVR & Camera Signal transmission mode Support Wireless/ Wired
Frequency Range 2.4G WiFi
Camera Supported 4 Channels
Connection Mode Repeater(Optional)
Wireless Doorbell(Opional) Power Supply Self - generating
Frequency Range 433Mhz/315MHz
Ring 25 polyphonic ringtones
System Main processor Hi3520D
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operator interface graphic menu operation interface, support mouse operation
Preview 1/4 Screen
Video Video input(CAM) 4 x 1080P / 960P / 720P
Video compression H.264
Recording resolution D1/960H/720P/960P/1080P
Audio Audio compression G.711A
Voice monitoring Optional
Record & Playback Recording mode Manual>Alarm>Dynamic Detection>Timing
Local Payback 4 x 720P
Search mode Search by Time/Calendar/Event/Channel
Storage & Backup Space occupation Video: CIF 4 - 5G/day x channel, D18 - 10G/day x channel;960H 12G - 20G/Day x channel
720P 20-30G/Day x channel; 1080p - 40G/day x channel; Audio:691.2M/day x channel
Record storage HDD/Network
Backup mode Network backup, USB hard disk
External Antenna Built-in
Network interface 1 x RJ45 10M/100M, self-adaption
USB interface 1 x USB2.0 ports
HDD 2.5" HDD Optional: 500GB/1TB/2TB/3TB/4TB
1 SATA(Up to 4TB for each disk)
General ONVIF Support
Network protocol Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.
Power Supply DC12V/2A
Power Consumption Below 15W(Including HDD)
Work Environment Temperature: - 50° - +55°, Humidity:10% -90%, Atm:86kpa - 106kpa
Dimension 288mm(W) x 252mm(H) (with stand)
Weight Below 1kg(with HDD/Without Packing)



Camera Specification



Resolution 2.0 Megapixel 1.3 Megapixel 1.0 Megapixel
Sensor 1/3" Scan Sensor 1/4" Scan Sensor
S / N Ratio Abovve 39.1dB
Resolution 1920 x 1080 16:9 1280 x 960 4:3 1280 x 720 16:9
Minimum illumination Color: 0.1 Lux; B/W:0.01Lux
Lens 3.6/6mm
OSD Date Time & Title
Day & Night Auto / Color / B/W
3D - DNR Auto
Mirror / Flip On / Off
Privacy Regional Shelter 4 Zone Selectable
Smart Stream Dual - Stream:
1920 x 1080@15fps
640 x 480@15fps
Dual-Stream:
1280 x 960@15fps
640 x 360@15fps
Dual-stream:
1280 x 720@15fps
640 x 360@15fps
Power DC12V - 1A
Power Consumption Below 6W
Port RJ45 / WIFI802.11 b/g/n
Weatherproof Rating IP65
Working tem / humidity - 10°C - + 50°C / 30% TO 80% RH
Storage tem/ Humidity - 20°C - + 60°C / 20% TO 90% RH
Dimension(mm)

205(L) x 70(W) x 55(H)mm
