P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance

Good quality Marine PTZ Camera for sales
Good quality Marine PTZ Camera for sales
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance

China P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance supplier
P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance supplier P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance supplier P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance supplier

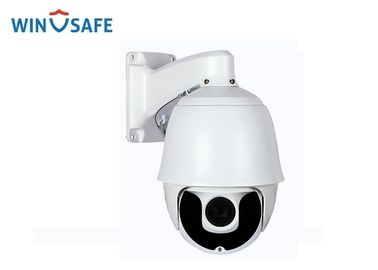

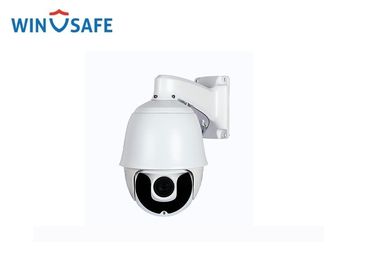

Large Image :  P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-HD812

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/Month
Contact Now
Detailed Product Description
BLC: Support Sensor: 1/3" CMOS 2MP Panasonic34220
Output Pixel: 1920 X 1080p/30fps, 1920 X 1080p/25-60fps AGC: Auto/Manual
Auto Flip: Horizontal 180°, Vertical 93° Power: DC12V/4A
Optical Zoom: 36X Lens: F = 4.6 - 165.6mm

7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance P2P IP PTZ High Speed Dome Camera/WS-BT812



Feature



※ Support P2P function

※ 7" half metal body construction, IP66

※ Optical function: Alarm, Audio, SD Card slot

※ 11pcs Array 42MiLed + 4pcs Laser Led,IR Range to 240M

※ ONVIF 2.4, compatible with Hikivision,DAHUA,XM,Video park NVR etc.

※ Compatible with CMS, UC2, Milestone,NUUO and AXXON platform. etc.

※ Intelligent IR illumination & power consumption is variable, dependant the zoom factor



Technical Specification





Model No. WS-HD812
Camera
Sensor 1/3" CMOS 2MP, Sony 323 1/3" CMOS 4MP OV4689 1/3" CMOS 2MP Panasonic 34220
Output Pixel 1920 x 1080/30fps
1920 x 1080/25fps
2595 x 1520/30fps
2292 x 1250/25fps
1920 x 1080/30fps
1920 x 1080/25fps
Lens 10X f =5.1mm - 51mm 20X f = 4.7mm - 94mm 36X f = 4.6mm - 165mm
BLC Support
AGC Auto/Manual
DNR 2DNR, 3DNR
WDR DWDR WDR ≥ 120dB
S/N Ratio ≥50dB
AGC Auto/manual
WB Auto/manual/indoor/outdoor
S/N Ratio ≥50dB
Dome
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Rotation Range Pan:0° - 360°, Tilt: 0° - 93°
Rotation Speed Pan:0° - 200°/s, Tilt: 0° - 100°/s
Auto Flip Horizontal 180°, Vertical 93°
Preset Points 220pcs presets(dwell time 01-60s interval available)
A-B Scan User programmabel(scan speed 1-64 levels setting available)
Guard Tours 3 groups(Max. 16 points, dwell time user selectable)
Operating temperature -40°C - +60°C
Operation Menu English
Power DC12V 4A
Consumption ≤15W
Lightning Protection Transient voltage 6000V
Related validation IP66,CE,FCC,RoHs
IR distance up to 240 meters





Application



It can be widely used in wide range enviroments which required monitoring, e.g river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station. Venue, parcel surrounding, and etc.



P2P High Speed Dome IP PTZ Camera 7" 2MP 36X Opitcal Zoom 240M IR + Laser Distance



Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
