Smart Mini HD P2P OSD IP66 Outdoor 2MP 4X IR Bullet Pan Tilt IP Camera

China Smart Mini HD P2P OSD IP66 Outdoor 2MP 4X  IR Bullet Pan Tilt IP Camera supplier
Smart Mini HD P2P OSD IP66 Outdoor 2MP 4X  IR Bullet Pan Tilt IP Camera supplier Smart Mini HD P2P OSD IP66 Outdoor 2MP 4X  IR Bullet Pan Tilt IP Camera supplier

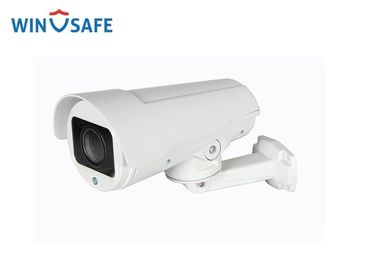

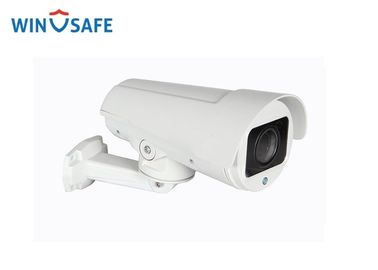

Large Image :  Smart Mini HD P2P OSD IP66 Outdoor 2MP 4X IR Bullet Pan Tilt IP Camera

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-HD345(2MP, 4X)

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
LEDs: 4pcs Arrray 42Mil IR LED IR Distance: 30 Meters
Sensor: 1/3" CMOS 2MP Sony323 Lens: F=2.8-12mm,4X
BLC: Support AGC: Auto/Manual
WB: Auto/Manual/Indoor/Outdoor DNR: 2DNR, 3DNR

Smart Mini HD P2P OSD IP66 Outdoor 2MP 4X IR Bullet Pan Tilt IP Camera/WS-HD345(2MP, 4X)



Product Feature


Total Metal housing, IP66
A-B scan, tour available
Support audio ( optional)
Support external POE(optional)
ONVIF GB/T28181;Support P2P function
Support H.264/MJPEG compression,triple stream, video output



Application



It can be widely used in wide range enviroments which required monitoring, e.g river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station. Venue, parcel surrounding, and etc.



Technical Specification



Model No. WS-HD345
Camera
Sensor 1/3" CMOS 2MP Sony323 1/3" CMOS 4MP OV4689 1/3" CMOS 2MP Sony323 1/3" CMOS 4MP OV4689
Output pixel 1920x1080/30fps
1920x1080/25fps
2592x1520/30fps 2592x1520/25fps 1920x1080/30fps
1920x1080/25fps
2592x1520/30fps
2592x1520/25fps
Lens 4X f=2.8~12MM 2.8 / 4 / 6 / 8 /12MM 10X f=5.1mm~51mm 10X f=5.1mm~51mm
BLC Support
AGC Auto/manual
WB Auto/manual/indoor/outdoor
S/N Ratio >50dB
Dome
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Video compression H.264/H.265/M-JPEG
audio compression G711,PCM
Mobile View(optional) Android iPhone
Rotation Range Pan:0º~220º , Tilt:-45º~40º
Rotation Speed Pan:0~30°/s , Tilt:0~25º/s
Preset Points 220pcs presets(dwell time 01-60s interval available)
Guard Tours 3 groups( Max.16 points, dwell time user selectable)
AB scan range Any point in range:-45º~40º and 0º~200º
AB scan speed 1-9 grades
Operating temperature Outdoor: -40℃~+60℃
Operation menu English
Consumption ≤15W
Lightning Protection Transient voltage 6000V
Related validation IP66,CE,FCC,RoHs
IR parameters
Auto Control IR LED PWM
IR distance Up to 100 meters
LEDs 6 PCS Array 42Mil IR LED 4 PCS Array 42Mil IR+2 PCS Laser LED
Support ambient light detection IR illumination on 1-9 grades selectable



Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
