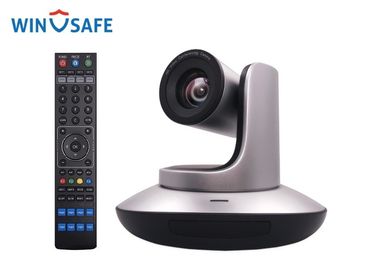

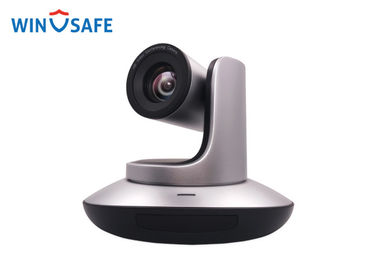

4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface

Good quality Marine PTZ Camera for sales
Good quality Marine PTZ Camera for sales
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface

China 4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface supplier
4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface supplier 4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface supplier

Large Image :  4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: UHV-400H

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Sensor: 1/2.5" CMOS Sensor FOV: 6.3°(near) - 72.5°(far)
OSD Menu: Yes Remoter Controller: Yes
Video Resolution: 4K Opitcal Zoom: 12X
Digital Zoom: 12X Video Interface: HDMI/RJ45/USB3.0/USB2.0

4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface/UHV-400H



Advantages



※ Adopts most advanced DSP,1/2.5 inch 12MP sensor
※ 4K wide angle optical lens: 12x optical zoom, 72.5° field of view
※ 4K video over IP, and support H.264, H.265 encoding
※ Support POE: easy to use one RJ45 cable to get video, control and power supply
※ IP,HDMI,SDI,USB outputs, fit for different application
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Standard Sony Visca, Pelco-P, Pelco-D control protocol
※ Supplied with function IR remote controller, can set IP address via OSD menu



Features



※ IP, HDMI,SDI and USB outputs simultaneously
※ 12X optical zoom + 2X digital zoom
※ 3840x2160p30 Ultra HD video resolution
※ Automatic access to the IP address
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ WDR, 3D Noise Reduction feature
※ 128 presets
※ Support RS232/RS485 serial control
※ Image flip function, support upside-down installation
※ Sony Visca and Pelco D/P protocol
※ Support daisy chain feature



Technical Specification



Model No. UHV-400-H
Sensor 1/2.5" 12Megapixel high quality CMOS Sensor
Video System HDMI IP SDI USB3.0
3840x2160p30/25
1080p60/50/30/25
720p60/50/30/25
108i60/50
Main Steam:
3840x2160p30
1920x1080p60
Sub Steam:
1280x720,704x576
640x480,352x288
1080p60/50/30/25
720p60/50/30/25
1080i60/50
1080p60/50/30/25
720p60/50/30/25
USB 3.0 & 2.0:
1027x576p30
960x540p30
640x360p30
352x288p30
Zoom 12x optical zoom + 2x digital zoom
FOV 6.3°(near) - 72.5°(far)
F.no. Wide: 1.84 Tele: 2.81
Min.Focus Distance Wide: 0.3m Tele:1m
Preset 10 via remote controller; 128 via serial port; preset precision: 0.1°
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 35° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Control Port RS232/RS485/RJ45
Video Port HDMI/RJ45/SDI/USB3.0/USB2.0
Network Speed 1000M
Noise Reduction 2D & 3D
SNR Above 50dB
Focal Length f=3.92(near) - 47.32mm(far)
Minimum Lux 0.01Lux
White Balance Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Anti Flicker 50Hz/60Hz/OFF
D/N Mode Supported
Gamma Supported
Mirror Image Supported
PanTilt Flip Supported
Iris Auto/Manual
Electric Shutter Auto/Manual
BLC Auto/Manual
Focus Auto/Manual
Video Encoding H.264/H.265
Bit Rate Control Variable Bit Rate, Constant Bit Rate
Video Bit Rate 1024Kbps - 30720Kbps
Frames 50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps (3840 x 2160 max.30fps)
IP Protocol TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP
POE Supported
Input Voltage DC12V, 2A
Dimension 220mm x 173mm x 190mm
Net Weight 1.25KGS(2.8LBS)

4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface



4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface



4K 3840X2160p Wide Agnle 12X Optical Zoon IP HD PTZ Video Conference Camera with SDI HDMI & USB Interface
