| Resolution: | 1920(H)*1080(V) | Pixel: | 2MP |
|---|---|---|---|
| TV System: | PAL/NTSC | S/N Ratio: | ≥52dB |
| Day/Night: | Color/ B&W (IR-CUT ) | Starlight: | / |
| BLC: | Support | Defog Mode: | Support |
| High Light: | hd ip security camera,ir ip camera |
||

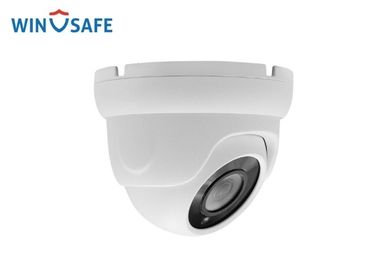

2.0MP 1080P HD IP Varifocal Metal Body IR Mini Dome Camera Outdoor Waterproof and Vandalproof IP66
Feature
※ 1/2.9"CMOS Sensor, HISILICON Hi3516E
※ H.265+/H.265/H.264+/H.264 Compression Method
※ WDR, With IR-CUT; IR Distance 30m Max.
※ With Internal POE
※ Main Stream: 1080P/720P@20fps; 3MP HD Lens
※ 2.8-12mm Varifocal Lens
※ IP66 Outdoor Metal Case, Vandalproof & Weatherproof
Specification
| Model No. | WS-IRDCASF200 |
| Camera | |
| Image Sensor | 1/2.9" CMOS Sensor |
| Resolution | 2MP 1080P |
| Effective Pixels | 1920(H)*1080(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
| Starlight | / |
| Corridor Pattern | / |
| Defog Mode | Support |
| ROI | / |
| BLC | Support |
| HDR | / |
| WDR | Support |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/NAS/CMS/Web |
| Lens | |
| Pixels | 3MP |
| Focus Length | 2.8-12mm |
| Focus Control | Manual |
| Lens Type | Varifocal |
| Night Vision | |
| Infrared LED | 14µ x 24PCS |
| Infrared Distance | 30M |
| IR Status | Auto Control |
| IR Power On | Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Optional, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 1920*1080@20fps |
| Main Stream 2 | 1280*720@20fps |
| Main Stream 3 | / |
| Sub Stream 1 | 720*480@20fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | 352*288@20fps |
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Interface | |
| Audio | Optional |
| Alarm | / |
| SD Card Slot | / |
| RS485 | / |
| General | |
| Housing | Metal , IP66 |
| Anti-cut Bracket | Optional Wall Bracket |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands |
| Power Source | DC12V±10%, 1100mA |
| Dimension | φ131 x 93(H)mm |
| Weight | 800g |

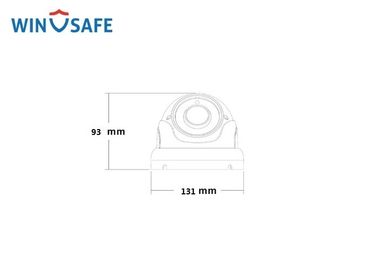

Drawing Dimension
