Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232

China Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232 supplier
Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232 supplier Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232 supplier Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232 supplier

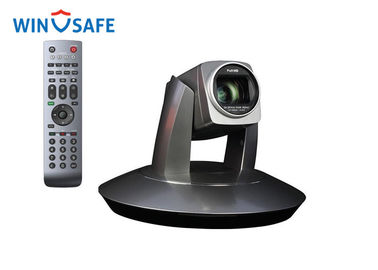

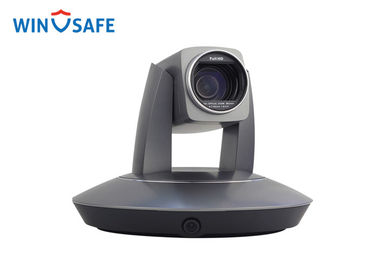

Large Image :  Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: LTC-A2001NV2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Resolution: 2.14MP Optical Zoom: 20X
Gain: Auto/ Manual S/N Radio: >50dB
Video Compression: H.264 Audio Copression: AAC
VISCA: Support PELCO-D: Support

2.14MP Double HD-SDI Channels 20X Optical Zoom IP Auto Tracking Camera Support RS485/RS232

Advantage

1. Two Cameras in One, 2 HD-SDI Outputs
    Get professional broadcast quality with outputs up to 1080p60.
2. PTZ Tracking Camera

    Pan, tilts and zooms automatically to track the subject. Features a 1/2.8" Sony Exmor CMOS sensor, 2.14 Megapixel resolution, and 20x optical zoom.
    Wide Angle Camera

    Wide panoramic view of the room. Features 1/2.8" Exmor CMOS sensor, 2.14 Megapixel resolution and 59.5° Field of View.
Both cameras are HD-SDI and can output up to 1080p60 simultaneously. AutoTracker 2 IP supports dual H.264 streams up to 1080p30.

3. Smooth and Seamless Tracking


    Tracks as well as a skilled camera operator.


4. Smart Tracking

    Locks the moving person in the center of the image. Tracks even if subject turns around or stands still. Camera is not impacted by small motions like hand gestures.

5. No Interference

    No impact from moving objects, lights or projectors. Tracks even if someone else walks in front of the subject.
6. Smooth Operation : Camera is quiet as it pans, tilts and zooms with no jitters or shutters. Pan/tilt speed can be customized.


Feature
※ H.264 compression
※ Support dual stream to output both for full view and tracking image
※ Compatible with ONVIF,RTSP,RTMP protocols
※ Configuration of camera is realized by network
※ Come with face and motion detection tracking technology,precisely lock & track lecturer
※ Standalone tracking,there is no need to have extra devies/sensors
※ Both two lens can output up to 1080p30 images through network
※ Smart full view lens has addressed geometric distortion
※ Color and brightness of both the two lens are the same(only for LTC-A2001N)
※ When tracking, the camera image is automatically adaptive to lecturer's height
※ There is no limit to tracking zone,the camera can track lecturer all around the classroom
※ Smart tracking performance like auto zoom,tilt motion,free of interfering objects/lights

Technical Specification


Model No.LTC-A2001NV2
Tracking Camera
Image Sensor1/2.8" Exmor CMOS, 2.14MP
Lensf =4.7mm -94.0mm;F1.6 - F3.5
ZoomOptical: 20X, Digital: 12X
Field of View59.5° - 2.9°
FocusAuto, Manual, One push
Min.Illumination0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed1/1 - 1/10,000s
GainAuto/Manual
White BalanceAuto, Indoor, Outdoor, One push, Manual,
ExposureAuto, Manual, Shutter Priority, Iris Priority
S/N RadioAbove 50dB
Full view camera
Image Sensor1/2.8" Exmor CMOS
Effective Pixel2.14mp
White BalanceAuto
ExposureAuto
Field of ViewHorizontal : 92°;Vertical : 50°(before geometric distortion correction)
Lens3.73mm
PTZ
Pan/Tilt Angle RangePan : -170° - +170° ; Tilt : -30° - +90°
Pan/Tilt SpeedPan : 0.1° - +120°/s ; Tilt : 0.1° - +90°/s
Preset Number256
Network
Max,Image Size1920x1080
Frame Rate

HD : 50Hz:25fps(1920x1080) 50fps(1280x720);
        60Hz : 60fps(1920x1080) ,60fps(1280x720)

Video CompressionH.264
Audio CompressionAAC
ProtocolHTTP,RTSP,RTMP,TCP,UDP,ONVIF
Dual StreamSupport
Simultaneous Usersup to 10 users
EthernetRJ45 connector, 100M
Comm.InterfaceRS-485, RS-232
ProtocolVISCA and PELCO-D
General
Power SupplyDC12V
Power Consumption<20W
Working Temp0°C - +40°C
Storage Temp-20°C - +60°C
Dimension226mm x 212mm x 163mm
Weight1.96KG
ColorGrey





                        Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232



Dimension Drawing


                        Double HD-SDI Channels IP Auto Tracking Camera 2.14MP Resolution Support RS485/RS232
