HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station

China HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station supplier
HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station supplier HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station supplier HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station supplier

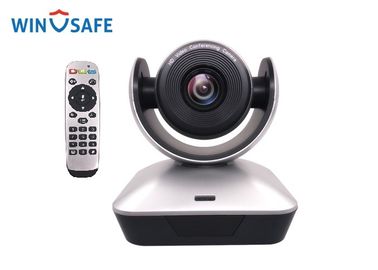

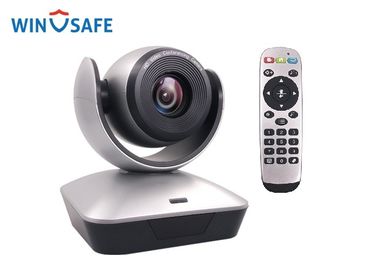

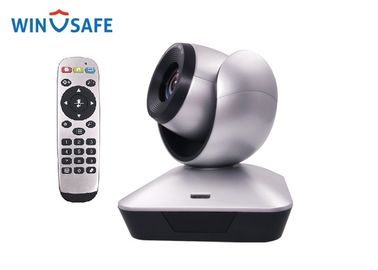

Large Image :  HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station

Product Details:

Place of Origin: CHINA
Brand Name: WINASFE
Certification: CE,FCC etc.
Model Number: UHV-10X-U2S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Netural Packing
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Max Resolution: 1920x1080p60 Sensor: SONY CMOS Sensor
Optizal Zoom: 10X Minimum Lux: 0.1Lux
USB2.0: Support Visca Protocol: Support
OSD Menu: English/Spanish/Russia/Chinese Dimension: 148 X 132 X 161(mm)

Small HD 1080P@ 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station



Advantage



※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor
and high quality 10x lens
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Compatible with the majority of video conferencing software(UVC1.5
protocol standard)
※ Powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time



Feature



※ USB 2.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 30fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls



Technical Specification



Model No. UHV-10X-U2S
Sensor 1/2.8 inch high quality, SONY CMOS Sensor
Video System 1920x1080P30/25, 1280X720P30/25
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.43°(wide) - 62.5°(tele)
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
Black Light Compensation ON/OFF
Anti Tlicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 output, 10 via remote controller
Video USB2.0(MJPG fomat)
Control RS232(Sony visca), USB 2.0(UVC1.5 protocol)
Power DC12V
OSD Menu English/Chinese
Dimension(W x H x W) 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm
Net Weight 0.9KG(2LBS)





HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station



Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days


Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
