| Power Supply: | DC12V / AC24V | Lens: | 2.8-12mm |
|---|---|---|---|
| ONVIF: | Yes | POE: | Optional |
| SOS: | Hi3516D | Image Sensor: | 1/3' Progressive Scan CMOS |
| Effective Pixel: | 1920(H) X 1080(V) | Weight: | 962g |
| High Light: | high resolution ip camera,ir ip camera |
||

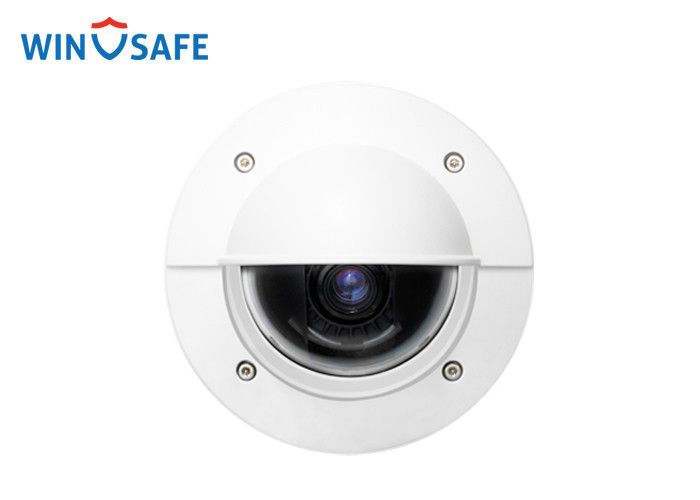

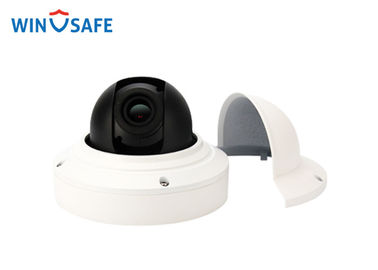

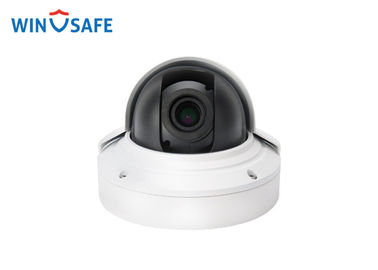

Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Features
※ 4.0 Megapixel, 30fps@2032*1920
※ 2.8-12mm(Motorized), 0.01Lux,110dB DWDR
※ Support ONVIF Profile S, FTP, RTSP, UPnP ETC.
※ Support Dual-Stream, Mobile Surveillance, One Push, Heartbeat Mechanism,3D-DNR
※ Defogging,D-WDR, Lens Correction, Corridor Monitoring etc.
※ Built-in MIC, Audio I/O, Dual Alarm in, Single Alarm out, SD card slot(128G), RS485
※ RJ45, 12V/AC 24V,POE optional
※ Vandal-proof, Weather-proof, 1K10
Technical Specification
| Model No. | WS-IP330 | |
| Hardware | ||
| SOS | Hi3516D | |
| Image Sensor | 1/3" Progressive Scan CMOS | |
| Effective Pixels | 1920(H) x 1080(V) | |
| Interface | ||
| Optical Lens | Interface | ∮14 |
| Iris | Fixed Iris | |
| Focal Length | 2.8-12mm(Motorized) | |
| Audio Talkback | 1ch MIC external access,3.5mm AV interface | |
| Audio Output | 1ch speaker output, 3.5mm AV interface | |
| Network Port | Lan | 10/100M BASE-TX, RJ-45 connector |
| RS485 | 1*RS485 interface | |
| Alarm I/O | 2ch alarm input, 1ch alarm output | |
| Micro SD | 128G | |
| Audio & Video encoding | ||
| Video Compression | H.264/H.265/MJPEG | |
| H.265 encoding: Main Profile | ||
| H.264 encoding: Baseline Profile/Main Profile | ||
| Resolution | Main Stream | 2032*1920/1280*720; 1-30fps(adjustable) |
| Sub Stream | 704*576/640*480/640*352/320*240;1-30fps(adjustable) | |
| Video Bitrate | 30Kbps - 16Mbps, Suports CBR/VBR | |
| OSD Settings | Support channel name, data and video stream overlay | |
| OSD location is adjustable | ||
| Privacy Mask | 4 configurable regions | |
| Image Orientation | Image flip and mirror | |
| Auto Image Control Functions | Auto Exposure Control(AEC);Auto White Blance(AWB); Auto Gain Control(AGC) | |
| Image Controls | Saturation, Brightness, Contract, Sharpness, Hue, Gamma ,D-WDR | |
| Others | Anti Fogging/Anti Trembling/IR Detection/IRIS/LSC | |
| Audio Compression | G.711A/G.711U/G.726 | |
| Two Way Audio | Support | |
| Data transmission and storage | ||
| Data storage | Video and Image | |
| Recording | Auto recording and manual recording(motion & sensor detection triggered recording, scheduled recording) | |
| Alarm output | FTP, E-mail | |
| Wireless protocols(-W) | --------------------- | |
| ONVIF Protocols | PROFILE S | |
| Remote View | PC | IE 6.0 above, Firefox, Google etc. |
| Mobile Phone | ---------------------- | |
| User Access | Maximum 5 users | |
| General Parameters | ||
| Environmental Casing | Aluminum Alloy Housing, Indoor and Outdoor Application | |
| Installation | Ceiling Mounted & Wall Mounted | |
| Operating Temperature | -10°C - 50°C | |
| Operating Humidity | 0% - 85%RH | |
| Power | DC12V ± 10%(AC24V ± 10%) | |
| POE | Support | |
| Power Consumption | <3.5W | |
| Dimension | Φ161mmxH115mm | |
| Weight | 962g | |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
