Internet Video Indoor / Outdoor Hidden IP Camera 140dB With Motion Sensor

China Internet Video Indoor / Outdoor Hidden IP Camera 140dB With Motion Sensor supplier
Internet Video Indoor / Outdoor Hidden IP Camera 140dB With Motion Sensor supplier Internet Video Indoor / Outdoor Hidden IP Camera 140dB With Motion Sensor supplier

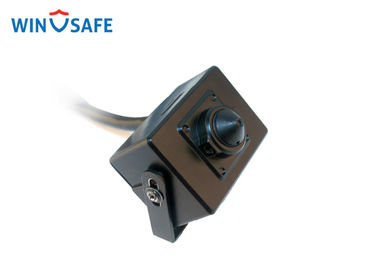

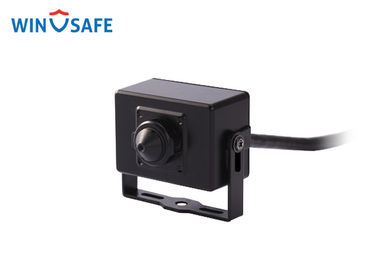

Large Image :  Internet Video Indoor / Outdoor Hidden IP Camera 140dB With Motion Sensor

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-HD110WB

Payment & Shipping Terms:

Minimum Order Quantity: 50
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs/month
Contact Now
Detailed Product Description
SOC: Ambarella A5S66 Image Sensor: 1/3" CMOS Sensor
Effective Pixels: 1920(H) X 1080(V) Iris: Fixed Iris
Focal Length: 3.7mm Memory Slot: Max 32GB
Weight: 175g Power Consumption: 3.5W

Internet Video Indoor / Outdoor Hidden IP Camera 140dB With Motion Sensor



Features



※ 1/3" CMOS Sensor
※ 2.1 Megapixel, 30fps@1920 x 1080
※ 3.7mm lens Mount, 0.01Lux
※ Support ONVIF 2.2, GB/T28181, FTP, RTSP etc.
※ Support Dual - Stream, with 3D noise reduction, real wide dynamic etc.
※ Audio I/O, 2CH Alarm Input & 1CH Alarm output, RS485, Dual SD card slot, RJ45, Video Loop, DC12V



Technical Specification



Model No.   WS-HD110-WB
Hardware
SOC Ambarella A5S66
Image Sensor 1/3" CMOS Sensor
Effective Pixels 1920(H) x 1080(V)
Interface
Optical lens Interfaces Pinhole
Iris Fixed Iris
Focal Length 3.7mm
Audio Talkback 1 CH MIC, 3.5mm AV interace
Audio Output 1 CH speaker, 3.5mm AV interface
Network Interace Lan 10/100M BASE-TX, RJ-45 connector
RS485 RS485 port optional
Alarm I/O 2ch Alarm input & 1ch Alarm output
Memory Slot Support 32GB
Audio & Video encoding
Video Compression H.264 Main Profile; MJPEG Baseline
Resolution Main Stream 1920*1080/1280*720; 1-30fps(Adjustable)
Sub Stream 720*576/720*480/640*480/320*240;1-30fps(Adjustable)
Video Bitrate 512Kbps - 8000Mbps, Support CBR/VBR
OSD Setting Support channel name, date, and video stream information overlay
OSD location is adjustable
Privacy Mask 4 configurable regions
Image Orientation Image flip and mirror
Auto Image Control Function AWB, AGC,AE, ANR, ACC
Image Controls Saturation, Brightness, Contract, Sharpness, 3D-DNR, Exposure
Others ----------------------
Audio Compression G.711
Two way Audio Support
Data transmission and storage
Data Storage Video and Image
Recording Timing and Alarm Recording(Motion & Sensor Detection)
Alarm Output FTP, E-mail
Network protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP
Wireless protocols -------------------
ONVIF protocols Support 2.2 version
Remote View PC IE 7.0 Above, firefox
Mobile Phone ----------------------
Max User Access 5 users
General Parameters
Environmental Casing Zinc alloy, indoor use
Installation ATM
Operatint Temperature -10°C - +50°C
Operatint Temperature 0% -85% RH
Power supplier DC12V ± 10%
POE Optional
Power Consumption 3.5W
Dimension 41mm x 31mm x 29mm
Weight 175g





Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
