CMOS Sensor USB Video Conference Camera 5MP 3X Digital Zoom 2 Years Warranty

China CMOS Sensor USB Video Conference Camera 5MP 3X Digital Zoom 2 Years Warranty supplier

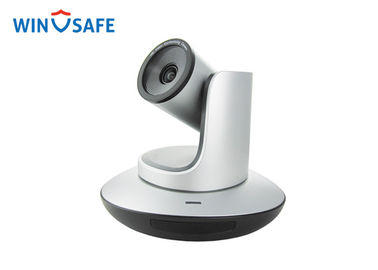

Large Image :  CMOS Sensor USB Video Conference Camera 5MP 3X Digital Zoom 2 Years Warranty

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: UHV-3X-U3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Zoom: 3x Optical Zoom + 3x Digital Zoom Preset: 128
Control Port: RS232/USB3.0 Dimension(W X H X W): 220mm X 173mm X 117mm
Video Port: DVI-I(HDMI)/USB 3.0 Seria Control: RS232/RS485
Lead Time: 5-8 Work Days Net Weight: 1.25kg

CMOS Sensor USB Video Conference Camera 5MP 3X Digital Zoom 2 Years Warranty





Advantages





※ Ultra crystal video quality: with Ambarella A7L DSP 1/3" 5MP Sensor and wide angle 3x lens
※ Fast switching between different video formats: only 4 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade(field-upgradable)
※ USB2.0 compatible
※ Daisy Chain function: with both Visca in and Visca out port
※ Compatible with the majority of video conferencing software(UVC 1.5 protocol standard)
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time





Features





※ USB 3.0 & DVI-I(HDMI) simultaneously output
※ Zoom: 3X Optical Zoom + 3X Digital Zoom
※ 1920x1080p 30fps high resolution
※ 105° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Exposure Compensation, 2D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls





Specification





Model No. UHV-3X-U3
Sensor 1/3 inch high quality, 5MP HD CMOS Sensor
Video System DVI-I(HDMI) port USB 3.0 port USB 2.0 port
1080p29.97/25
720p29.97/25
1080p29.97/25
1080p59.94/50/29.97/25
1600*900@60
1400*900@60
1366*768@60
1280*800@60
1024*768@60
800*600@60/30
640*480@60/30
720p25
800*600@30
640*480@60
640*480@30
Zoom 3x optical zoom + 3x digital zoom
View Angle 30.2°(wide) - 105°(tele)
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128
Control Port RS232/USB3.0
Video Port DVI-I(HDMI)/USB 3.0
SNR More than 47dB
Focal Length f=3.2(wide) - 9.6mm(tele)
Minimum Lux 0.01Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
BLC No
Input Voltage DC12V
Dimension(W x H x W) 220mm x 173mm x 117mm
Net Weight 1.25KG(2.8LBS)







CMOS Sensor USB Video Conference Camera 5MP 3X Digital Zoom 2 Years Warranty





CMOS Sensor USB Video Conference Camera 5MP 3X Digital Zoom 2 Years Warranty



Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
