ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification

ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification
ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification

Large Image :  ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: CKB-13

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs/month
Detailed Product Description
Model No.: CKB-13 Protocol: Pelco-D,Pleco-P, Hikvision, Dahua
Joystick: Control: Up, Down, Left, Right OSD Menu: English
Power Supply: DC12V Warranty Time: One Year
Weight: 0.61kg Dimension: 180mm X 165mm X 90mm
High Light:

ptz joystick controller

,

ptz ip camera controller

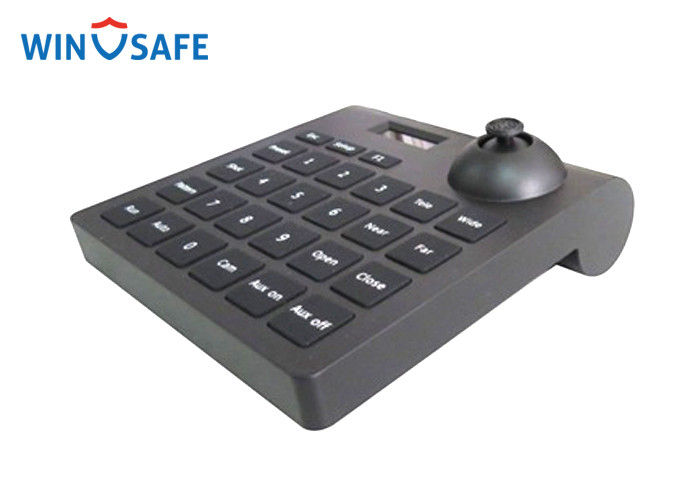

ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification





Application





Used in the places where need quick control for the high speed dome camera, PTZ, motorized lens, outdoor wiper shield, etc





Product Introduction





※ Real-time display the current control address’s agreement and baud-rate.
※ 4 level control speed can be set
※ Speed dome ID can be switched directly by pressing ‘AUX ON’/ ‘AUX OFF’.
※ Key-press sound volume can be adjusted
※ Small size suitable for use in car
※ RS485 control bus, can control up to 255 pcs speed dome cameras
※ All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters
※ Good communication compatibility, built-in Pelco-p, Pelco-d, Hikvision and Dahua protocol
※ Keyboard operation password on/off/lock function
※ LCD screen to real-time display its operation status





Feature





※ RS485 control bus, can control 7pcs SONY video conference cameras Max.
※ Can set and call 1-46 preset position of SONY video conference camera
※ All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters
※ Maximum sub-control keyboard:16
※ Keyboard operation password on/off/lock function
※ Key-press warning on/off function
※ LCD display



Specification



Model No. CKB-13
Protocol Pelco-D, Pelco-P, Hikvision, Dahua
Baud Rate(bps) 1200bps, 2400bps,4800bps,9600bps,19200bps,38400bps
Control Address Control 255 dome camera, decoder at the most, address code:0-255
Communication Mode RS485 half-duplex
Joystick control: up, down, left, right
Menu and Key-press English
Warning Tone Key - touch keep on/off
Power Supply DC12V ± 10%
Power Consumption 5W MAX
Working Temperature 0°C - 50°C
Storage Temperature -20°C - 70°C
Dimension 180 x 165 x 90(mm)
Weight 0.61
Certification CE, FCC, RoHs
Warranty Time One Year







Product Dimension(mm)

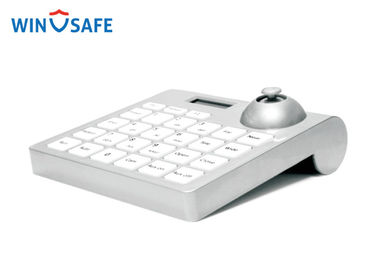

ABS Plastic Handheld Vehicle PTZ Camera Controller Mini 2 Axis CE FCC Certification 0





Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
