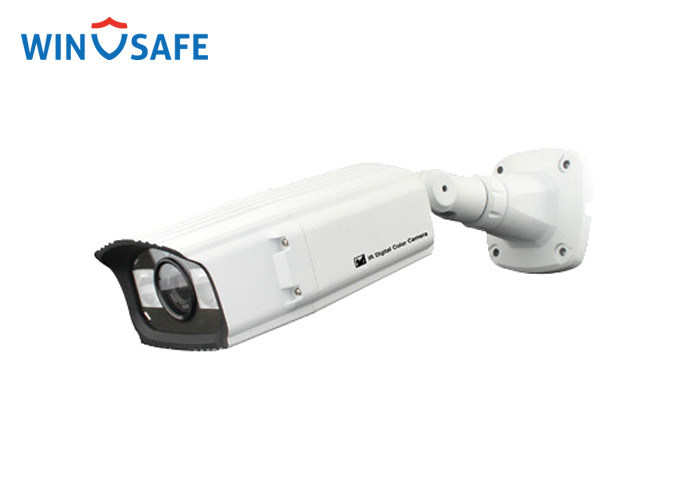

SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera

SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera
SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera

Large Image :  SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera

Product Details:

Place of Origin: China
Brand Name: winsafe
Certification: CE.FCC
Model Number: WS-IP316

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: neutral packaging
Delivery Time: 4-8 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Image Sensor: 1/2.8" 2.1 Megapixel Progressive Scan Sony EXMOR CMOS 122 Focal Length: 2.8-12mm
RS 485: RS485 Port Optional POE: Optional
PC: IE 6.0 Above; Firefox; Google Chrome Two Way Audio: Support
Max. User Access: 5 Users Environmental Casing: Aluminum Alloy Housing, Outdoor Use
High Light:

high resolution ip camera

,

ir ip camera

SD Card Full HD IP Camera Waterproof , Wide Dynamic Range IP Camera



※ 1/2.8"SONY Exmor Sensor Progressive Scan;

※ 2.1 Megapixel, 30fps@1920x1080

※ 2.8-12mm lens, IR Distance 60M, 2pcs IR Array LED, IR ON 0 Lux

※ Support OVIF 2..2, GB/T28181, FTP,RTSP,UPnP etc.

※ Support Dual-Stream,Mobile Surveillance, Heartbeat Mechanism,3D-DNR,
Defogging,D-WDR, Lens Correction, Corridor Monitoring etc.

※ RJ45, Video Loop, DC-12V, bracket integrated design

※ Option: Audio & Alarm I/O, SD card slot, RS485, PoE





Model WS-IP316
Hardware
SOC Hi3516C
Image Sensor 1/2.8" 2.1 Megapixel progressive scan Sony EXMOR CMOS 122
Effective Pixels 1920(H) x 1080(V)
Interface
Optical Lens Interfaces ∮14
Iris Fixed Iris
Focal Length 2.8-12mm
Audio Talkback 1ch MIC External access, 3.5mm AV interace(Optional)
Audio Output 1ch speaker output, 3.5mm AV interface(Optional)
Network Interface Lan 10/100M BASE-TX, RJ-45 connector
RS 485 RS485 Port Optional
Alarm I/O 1ch Alarm input or 1ch alarm output(Optional)
Memory Slot Optional Max 32GB
Audio & Video encoding
Video Compression H.264 Main Profile; MJPEG Baseline
Resolution Main steam 1920x1080/1280x720;1-25fps(Adjust)
Sub steam 720x576/640x480/640x352/352x288/320x240;1-25fps(Adjust)
Video Bitrate 30Kbps - 16Mbps, Support CBR/VBR
Tilt OSD Setting Supports channel name, date, and video stream information overlay
Privacy Mask 4 configurable regions
Image Orientation image flip and mirror
Auto Image Control Function Auto Exposure Control(AEC);Auto white Blance(AWB);Auto Gain Control(AGC)
Mnaual Image Controls Color saturation, hue, gamma, sharpness(edge enhancement)
Others Anti Fogging/Anti Trembliing/IR Detection/IRIS
Audio Compression G.711A/G.711U/G7.26
Two Way Audio Support
Date transmission and storage
Date Storage Video and Image
Recording Recording set up to record by Auto or manual(motion and alarm trigger, schedule)
Alarm Output FTP,E-mail
Network protocol TCP/IP,UDP,RTP,RTSP,RTCP, HTTP,DNS,DDNS, DHCP, FTP,NTP,PPPOE,SMTP,UPNP
Wireless Protocol(-W) ``````````````
ONVIF protocols Support 2.2 Version
Remote View PC IE 6.0 above; Firefox; Google Chrome
Mobile Phone Support Windows Mobile, Symbian, iPhone, Android system
Max. User Access 5 Users
General Parameters
Environmental Casing Aluminum alloy Housing, Outdoor Use
Installation Ceiling/Wall Mount, 3D adjustable
Operating Temperature -10°C - +50°C
Operating Humidity 0%-85% RH
Power DC12V
POE Optional
Power Consumption <9W
Dimension L340xW108MM
Weight

830g
