Product Details:
Payment & Shipping Terms:
|
| Image Sensor: | 1/2.8" 2.0mp Sony EXMOR CMOS | Focal Length: | 2.8-12mm |
|---|---|---|---|
| RS 485: | RS485 Port Optional | POE: | Optional |
| PC: | IE 6.0 Above; Firefox; Google Chrome | Two Way Audio: | Support |
| Max. User Access: | 5 Users | Alarm Output: | FTP,E-mail |
| Image Orientation: | Image Flip And Mirror | ||
| High Light: | high resolution ip camera,hd ip security camera |
||

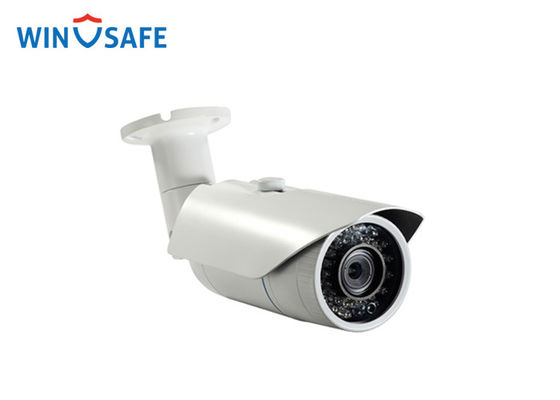

Infrared Bullet IP Camera HD 1080P Support Two Way Voice Intercom Equipment
Specification
| Model | WS-IP301 |
| Item | Bullet IP Camera |
| Device Type | 1080P 9P006 CMOS Sensor |
| Size | 1/2.5 |
| Day/Night | Yes |
| Min. Scene Illumination | 0.5Lux(IR ON) |
| Infrared Sensitivity | Support |
| Filter | IR-CUT |
| IR-led | Yes |
| IR Distance | 30M |
| Electronic Shutter | 1/5-1/15,000/s |
| lens | |
| Lens | 4/6/8mm lens optional |
| Aperture | Fixed Aperture F1.2 |
| Video | |
| Compression | H.264 Main Profile/Baseline |
| Picture Resolution | 1920 x 10800@30fps |
| Steam flow | Suport dual stream |
| Bit Rate | 128-8192kbps |
| Bit Rate Type | CBR/VBR |
| S/N Ratio | >50DB |
| Image enhancement | Auto White Balance, Backligh compensation, Brighness, Contrast, Saturation adjusted |
| Subtitles | Support channel name,date/time |
| Flip Config | Up/down, Left/righ |
| Audio/Alarm | |
| Audio | Support the microphone input and Line out, support two-way voice intercom equipment |
| Equipment | An external audio equipment |
| Audio input/output | one channel audio input, one channel audio output |
| Audio Compression | G.711/G.726 |
| Alarm input/output | one channel alarm input, one channel alarm output |
| Alarm way | Motion Detection: Configure motion area, detecting sensitivity is adjustable Cover alarm: the alarm sensitivity is adjustable |
| Alarm Processing | The control center to monitor, Go to PTZ preeset pos, send E-mail, Log record, SD card storage etc. |
| Network | |
| Protocol | HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181 |
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector |
| Safety | IP address filtering,User level password protection,The user access log |
| Softwre | |
| Web Browser | Microsoft Internet Explorer 6.0 and above,google,firefox etc. |
| Software Management | CMS and the devices compatible with ONVIF |
| Software intelligence function | Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
| Event action | Files are stored to the back end equipment,Send E-mail,Send SMS,Zoom in alarm,Pop ap map ,Go to PTZ preset pos etc |
| Mobile Phone | Support iPhone, Android, Bit rate:32k-512k adjustable, Frame rate:6-12fps |
| Remote Access | DDNS, Software, P2P |
| Physical Properties | |
| Accessories | Power adapter, Network cable, Stand, Operation manual, CD, Screw bag |
| Power Comsumption | DC 12V, Module power consumption is less than 2W |
| Temperature | -20°C - 60°C |
| Humidity | 10% - 80% |
| Certification | CE,FCC |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
