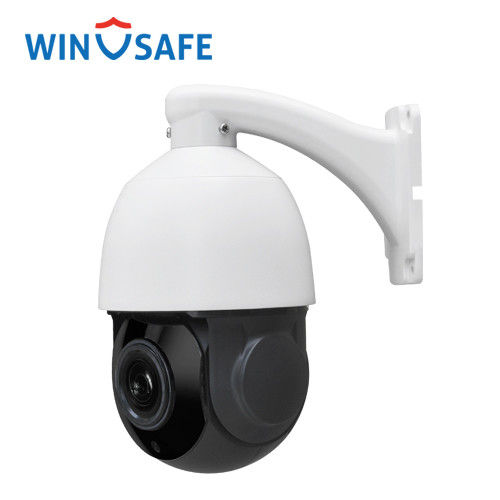

Wireless PTZ IP Camera Optical Zoom 10X With Strong Lightning Protection

Wireless PTZ IP Camera Optical Zoom 10X With Strong Lightning Protection
Wireless PTZ IP Camera Optical Zoom 10X With Strong Lightning Protection

Large Image :  Wireless PTZ IP Camera Optical Zoom 10X With Strong Lightning Protection

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-53AIRW/P-130

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/Month
Detailed Product Description
Optical Zoom: 10X Low Lux: 0.1Lux(Color Mode)
IR Distance: 60M Led Qty: 6pcs
Sensor: 1/3" CMOS Sensor Resolution: 960P
Focal Length: 5.1-51mm Iris Value: F1.6-F1.8
High Light:

pan tilt security camera

,

ptz surveillance camera

Wireless PTZ IP Camera Optical Zoom 10X With Strong Lightning Protection





Poduction Introduction



1) Precision motor-driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree, the image does not have any vibration under any speed;
2) 1.3MP 1/3” CMOS, 10X optical zoom;
3) Support ONVIF protocol;
4) Support TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP protocol;
5) Strong lightning protection, anti-surge function;
6) Outside weather-proof level up to IP66;





Feature





1) 6PCS high-power infrared light, turn divided into two groups, no flashlight effect, IR distance 60m.
2) 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area;
3) Pan speed is 0.6°~200°/s and tilt speed is 3.5°~30°/s;
4) Support 220 preset; 8patrols, each patrol can contain up to 32 presets; support 4 pattern, can totally record up to 10 minus. Support A,B line scanning;
5) Support proportional zoom function, rotation speed can be adjusted automatically according to zoom;
6) Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)





Technical Specification



Model No. WS-53AIRW/P-130
PTZ parameter IR distance 60m
Pan range &speed 360°endless pan range and speed 0.6°-200°/S
Tilt range & speed 0°- 90°tilt range, auto flip, speed 3.5°-30°/S
Video parameter Image sensor 1/3" Ex-view 1.3MP Aptina CMOS AR0130
Resolution Main stream: (1280×960,1280×720,720×576,640×480)
Sub stream: (640×480,352×288,320×240,176×144)
Low lux 0.1Lux(color mode),0.01Lux(black mode);0 Lux(IR night on)
Electronic shutter 1/2 ~ 1/20,000s, support slow shutter
Coding parameter Video compression Adopt H.264High profile/M-JPEG double stream, three stream output(2 input H.264+1 ouput MJPEG);
Stream Rate 256Kbps~10000Kbps(main stream),32Kbps~2000Kbps(sub stream)
Frame rate 50Hz: 25 fps(1280×960,1280×720)
60Hz: 30 fps(1280×960,1280×720)
Lens spec Focal length 5.1~51mm
Optical zoom 10X
Iris value F1.6~F1.8
Angle of view 68°~6.7° (wide angel-telescope)
Function WDR Support digital WDR.
Mobile remote Support android, IOS smart phone remote control(for optional)
Digital noise ratio Support DNR,3DNR
White balance auto,outdoor,indoor,lamp mode,manual
3D positioning Support click on the center,select and amplify
compatibility Support Hikvision,Dahua,Jufeng CMS,UC2 etc software platform joint in,compatible with many brands NVR connection.
Day and night transfer auto/manual
Port Network interface Built-in RJ45 port,support 10M/100M
Power supply DC 12V/2A
Others Power Consumption 20(MAX)
Working Temperature and Humidity -20℃~+60℃,≤90%RH(frostless)
Protection grade TVS3000V lightning protection, surge protection and voltage transient protection, weather proof: IP66
Package size(mm) 225*245*230
Weight (Kg) 2.16KG(with zoom module)





Application



It can be widely used in wide range enviroments which required monitoring, e.g river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station. Venue, parcel surrounding, and etc.
