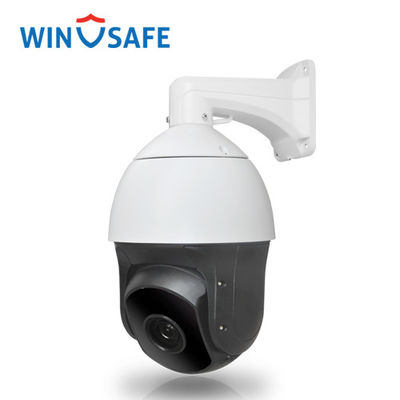

1.3MP Outside / Indoor IP PTZ Camera IP66 Constant Current Circuit Design

1.3MP Outside / Indoor IP PTZ Camera IP66 Constant Current Circuit Design
1.3MP Outside / Indoor IP PTZ Camera IP66 Constant Current Circuit Design

Large Image :  1.3MP Outside / Indoor IP PTZ Camera IP66 Constant Current Circuit Design

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-63BIRW/P-130

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/Month
Detailed Product Description
IR Distance: 150M Weight: 5.5kg
Noise Reduction: 3D & 2D WDR: Support
Focus Model: Auto/Manual Focus Lens: 4.7 - 84.6mm,
Iris Number: F1.2-F2.8 Optical Zoom: 18X
High Light:

pan tilt security camera

,

ptz surveillance camera



1.3MP Outside / Indoor IP PTZ Camera IP66 Constant Current Circuit Design


Application



It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.


Product Overview


1.IR Function


1) Minimum illumination 0Lux.
2) Adopt 10pcs infrared light, IR distance up to 150m.
3) constant current circuit design, IR lights life -time up to 30000 hours..



2. System Function


1) Adopt high performance image sensor, clear image and the maximum resolution can up to 1280*960.
2) Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree, the image does not have any vibration under any speed.
3) Built-in network program function, support ONVIF protocol access.
4) Support Chinese and English IE interface and have operation tips function,user interface friendly.
5) Support system double backup function to ensure the data no lost.
6) Support park function,which means the camera will turn to the park area automatically when there is no nobody operation in a period time.
7) Support lightning protection, anti surge.
8) Outdoor speed dome camera protection grade:IP66.



3. Zoom module function


1) Support auto iris,auto focus, auto white-black balance and back-light compensation.
2) Support super low illumination,0.2Lux/F1.2(color),0.01Lux/F1.2(black-white),O Lux no IR.
3) Support 3D digital noise reduction and D-WDR function.
4) Effective pixels is 1.3mp (960p).
5) 18x optical zoom, 16x digital zoom.



4.Network Function


1) Adopt high performance platform,which was much stable and reliable.
2) Support Ethernet control.
3) Can view and control the image via IE browser and Client Software.
4) Support NAS video storage,video can be go on downloads when network cut-off,max can support 8pcs NAS disk.
5)Support two levels user rights management,support authorized users and passwords,support HTTPS encryption and IEEE 802.1x network access control.
6) Adopt H.264 High profile/M-JPEG dual encoding,triple stream output(2CH H.264+1CH MJPEG)
7) Support multiple network protocol:
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,
TCP/IP,DHCP,PPPoE.



5. PTZ control


1)Adopt network communication protocol.
2) Pan 220°/s,tilt 30°/s continuous rotation,no blind monitoring area after auto flip 180°.
3) Pan speed 0.6°/s~220°/s,tilt speed 6°/s~30°/s, support proportional zoom function,the rotate speed will be auto adjusted according to the camera lens zoom.


Technical Specification



Model No. WS-63CIRWP-130
Camera Image sensor 1/3" Progressive Scan CMOS
Effective pixels 1.3MegaPixels
Low illumination

color:0.2Lux @ (F1.2,AGC ON),black-white:0.01Lux @(F1.2,AGC ON),

0 Lux Nith IR

Resolution ≥700TVL
White balance auto.indoor.outdoor.Sodium lamp mode,manual
Gain control Auto/manual
S/N >50db
Noise reduction 3D&2D
Back-light compensation On/off
WDR Support
Electronic shutter 1/2 ~1/20,000s,support slow shutter
Day-night mode Auto ICR, auto color to black mode
Focus mode Auto/manual
Focus lens 4.7~84.6mm,18x optical zoom
Zoom speed about 3s(optical,Wide-Tele)
Pan angel 68.5°~4.2 °(Wide-Tele)
Close range 10~1000mm(Wide-Tele)
Iris number F1.2~F2.8
Function IR distance 150M
IR angel three group angel can be adjusted based on the zoom
Pan speed 0.6°~220°/S
Tilt speed 6°~30°/S
Tilt range 0°~90°,auto flip 180°
Proportional zoom Support, change the speed based on the zoom
Preset 220
Patrol 8, each group can add 32pcs preset
Pattern scan 4,each group can record 100pcs motions
A.B scan Support
Park function Support
Network Max image size 1280X960
Frame rate 50Hz: 25 frame(1280×960)
60Hz: 30 frame(1280×960)
Video compression H.264/MJPEG
Network protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,

NTP,RTSP,RTP,TCP/IP ,DHCP,PPPoE

Simultaneous view number Max 6CH
Triple stream Adopt H.264High profile/M-JPEG dual encoding, triple stream output(2CH H.264+1CHMJPEG)
Safe mode authorized user name and password and MAC address binding;HTTPS encryption;IEEE 802.1x network visit control
Network interface Built-in RJ45 network interface,support 10M/100M IP DATA
Application program interface Provide Linux,NindoNs SDK develop bag and CGI protocol,can be second fast developed
CMS HCMS
Browser Support IE7,IE8,IE9,Chrome8+,Firefox3.5+,Safari5+
Others PTZ control protocol pelco-d,pelco-p,HIKVISIO,DAHUA
Power supply DC 12V4A/AC24V for selection
Power consumption Max 10W in day-time, Max 30W in night
Working temperature and humidity -20℃~+60℃,≤90%RH(no frostless)
Protection grade TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66
Package size(mm) 290×290×460
weight(Kg) 5.5



Structure Dimension (mm)


1.3MP Outside / Indoor IP PTZ Camera IP66 Constant Current Circuit Design 0
