Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot

China Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot supplier
Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot supplier Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot supplier

Large Image :  Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: PAHC-S3002N-IR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5 - 8 work days
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Optical Zoom: 20X Digital Zoom: 12X
View Angle: White Materia: 59.5°(wide) To 3.3°(tele)
Focal: F=4.7mm - 94mm IRIS: F1.6 To F3.5
BLC: On/Off WDR: On/Off

Aluminum housing Weatherproof IP66 Ruggged PTZ Camera With Damper and Wiper For Patrol Robot

Updated Sony Module 7520A makes the camera quality more stable and brilliantly sharp to output. Like former high quality Aluminum housing it has, it offers powerful and friendly user experience in use for robot / Ship / Boat / Construction site / Police car / Emergency vehicle, etc.

Features

※ 1/2.8" CMOS, 2.13MP, 30X/20X optical zoom
※ Support HD-SDI and SD output
※ Efficient 120m IR distance
※ Hidden seamless window wiper with adjustable speed
※ Wide dynamic range, ICR day/night
※ Optional damping system
※ Digital image stabilization
※ Protection index: IP67
※ Soft PTZ address, protocol and baud rate self-adpative
※ 10.8-28V voltage input
※ Auto power-off with low power supply


Technical Specification


Model No.PAHC-S2008-IRPAHC-S3002-IR
Camera
Image Sensor1/2.8"CMOS
Effective Pixel2.13MP
Signal System(HD)HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25 ; SD: PAL/NTSC
Signal System(SD)PAL/NTSC
Min.IlluminationColor:0.0013Lux; B/W:0.0008Lux
White BalanceAuto
FocusAuto / Manual
ExposureAuto / Manual
S/N RatioNote less than 50 Db
BLCOn / Off
WDROn / Off
Digital Image StabilizationNoOn/Off
Digital Noise Reduction1 - 5Steps/OFF
Day/NightAuto / Manual
Lens
Optical Zoom20X30X
Digital Zoom12X
Focalf=4.7mm - 94mmf=4.3mm - 129mm,
IRISF1.6 to F3.5F1.6 to F4.7
View Angle59.5° (wide) to 3.3° (tele)63.7° (wide) to 2.3° (tele)
PTZ
Pan Range360° Continuous
Pan SpeedControl Speed:0.5° - 80°/s, adjustable; Preset Speed:80°/s
Tilt Range- 15 ° - 90° with auto flip
Tilt SpeedControl Speed:0.5° - 75°/s, adjustable; Preset Speed:75°/s
Preset Number256
Preset Precision±0.2°
IR Light
Wave Length850nm/940nm
Range120m(850nm) / 60m(940nm)
SwitchAuto / Manual
General
OSD LanuageEnglish
Video Output(HD)HD-SDI
Video Output(SD)CVBS
Comm. InterfaceRS-485
Address0 - 255
Comm.ProtocolPELCO-P / PLECO-D(self-adaptive)
Protocol2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
VoltageDC 10.8 - 28V
PowerMin:12W; Max:55W
Working Temperature-35°C - +65°C
IP CodeIP67
DimensionsStandard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm)
WeightStandard: 4.9kg; 5.65kg(with damper)



Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot

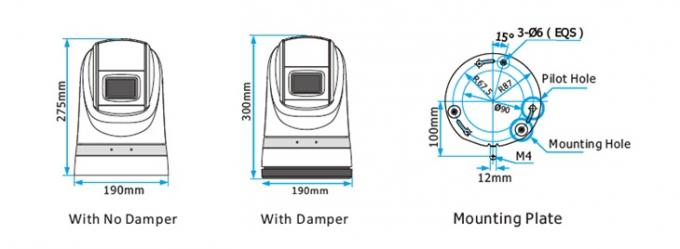

Dimensional Drwing

Aluminum housing Weatherproof IP66 ruggged PTZ Camera With Damper and Wiper For Patrol Robot
