Home ProductsFull HD IP Camera

2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor

Good quality Marine PTZ Camera for sales
Good quality Marine PTZ Camera for sales
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor

China 2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor supplier
2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor supplier 2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor supplier

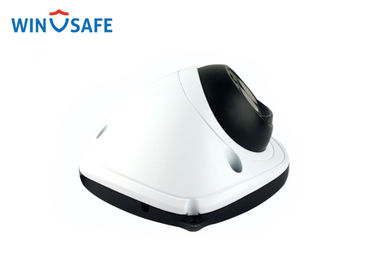

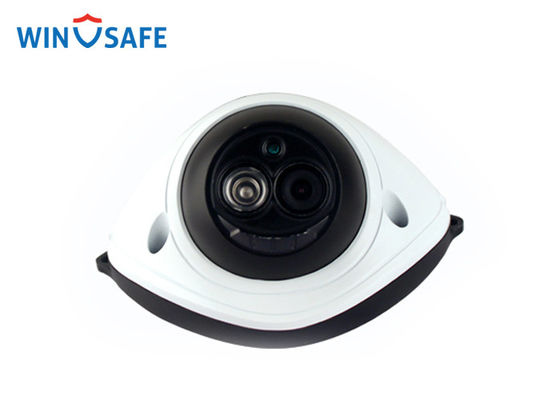

Large Image :  2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-IP310

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Neutral Packing
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Lens Interfaces: M12 IRIS: Fixed IRIS
Focal Length: 3.6mm Date Storage: Video And Image
Alarm Output: FTP, E-mail POE: Optional
Weight: 310g Power Consumption: 5W



2.1MP ONVIF Full HD IP Camera , Micro Dome IP Camera POE With 1/28" SONY CMOS Sensor





Features



※ 1/2.8" SONY Exmor progressive scan CMOS Image Sensor;
※ 2.1 Megapixel, 30fpb@1920x1080
※ 3.6mm lens,IR Distance 25M, 1pcs IR Array LED, IR ON 0 Lux
※ Support PROFILE S, GB/T25181, FTP, RTSP, UPnP etc.
※ Support Dual-stram,mobile surveillance, heartbeat mechanism, 3D-DNR,Defogging, D-WDR, Lens Correction, Corridor Monoitoring etc.
※ SD card slot, RJ45, Video Loop, DC12V
※ Option: MIC, Audio & Alarm I/O, RS485, PoE



Specification



Model WS-IP310
Hardware
SOC Hi3516C
Image Sensor 1/2.8" 2 Megapixel progresive scan Sony EXMOR CMOS 138
Effective Pixels 1920(H) x 1080(V)
Interface
Optical Lens Interfaces M12
Iris Fix Iris
Focal Length 3.6mm
Audio Talkback 1CH Mic input or External access,3.5mm AV interface,Optional(with MIC, waterproof will IP65, without MIC is IP66)
Audio Output 1CH speaker output, 3.5mm AV interface
Network Interface Lan 10/100M BASE-TX,RJ-45 connector
RS485 RS485 port optional
Alarm I/O 1ch Alarm input or 1ch alarm output,optional
Memory Slot Micro SD, Max 32GB
Audio & Video Encoding
Video Compression H.264 Main Profile,;MJPEG Baseline
Resolution Main Stream 1920x1080/1280x720;1-25fps(Adjust)
Sub Stream 704x576/640x480/640x352/320x240;1-25fps(Adjust)
Video Bitrate 30Kbps - 16Mbps, Supports CBR/VBR
Tilt OSD Settings Support channel name, date and video stream information overlay
OSD location is adjustable
Privacy Mask 4 Configurable regions
Image Orientation image flip and mirror
Auto Image Control Functions Auto Exposure Control(AEC), Auto White Balance(AWB);Auto Gain Control(AGC)
Manual Image Controls Color saturation, hue, gamma, sharpness(edge enhancement)
Others Anti Fogging/Anti Trembling/IR Detection/IRIS
Audio Compression G7.11A/G7.11U/G7.26
Two Way Audio support
Date transmission & Storage
Date storage Video and Image
Recording Recording set up to record by Auto or Manual(motion and alarm trigger, schedule)
Alarm Output FTP,E-Mail
Network Protocol TCP/IP,UDP,RTP, RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF protocols Support PROFILE S
Remote View PC IE 6.0 Above, firefox, Google Chrome
Mobile Phone Support Windows Mobile, Symbian, iPhone, Android system
Max. User Access 5 users
General Parameters
Enviromental Casing Aluminum alloy Housing, Outdoor and Indoor Use
Installation Ceiling mount, 3D adjustable
Opetration Temperature 10 °C ~ 50 °C
Opetration Humidity 0%-85%RH
Power DC12V
POE Optional
Power Consumption 5W
Dimension L126 x W123 x H65mm
Weight 310g





Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
