Indoor HD IP Security Camera 2.0MP / 4.0MP 2.5 " Compact Size With Metal Case

China Indoor HD IP Security Camera 2.0MP / 4.0MP 2.5 " Compact Size With Metal Case supplier

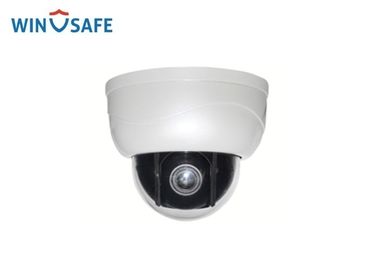

Large Image :  Indoor HD IP Security Camera 2.0MP / 4.0MP 2.5 " Compact Size With Metal Case

Product Details:

Place of Origin: China
Brand Name: Winsafe
Certification: CE, FCC
Model Number: WS-HD42F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Lens: 3X Focus Length: 2.8mm~8mm
Pixel: 2.0MP Resolution: 1920*1080@25/30fps
S/N Ratio: >50dB Video Compression: H.264/H.265/M-JPEG
Audio Compression: G711,PCM Ingress Protection: IP66

Indoor 2.0MP / 4.0MP HD-IP Metal Case IR Mini Dome Camera Waterproof IP66




※ 2.5" compact size,indoor
※ Support audio ( optional)
※ ONVIF2.4;Support P2P function
※ Support H.264 (H.265)compression
※ Pan/Tilt/Zoom, A-B scan, tour available
※ Compatible with HIKVISION ,DAHUA, XM NVR
※ Compatible with Milestone, NUUO and AXXON platform




Model No. WS-HD42F
Sensor 1/3” Progressive scan CMOS 1/3" CMOS 4MP OV4689
Lens 3X 2.8mm~8mm 2.8 / 4 / 6 / 8MM
Total pixel 2.0MP 4.0MP
Output pixel 1920x1080/30fps
BLC Support
AGC Auto/manual
WB Auto/manual/indoor/outdoor
S/N Ratio >50db
Software Control IE, CMS, Management Platform
Video compression H.264/H.265/M-JPEG
Audio compression G711,PCM
Mobile View(optional) Android iPhone
Rotation Range Pan: 0°~355º , Tilt: 0°~93 º
Rotation Speed Pan: 0~25°/s , Tilt: 0~20°/s
Auto Flip Support
Preset Points 220pcs presets(dwell time 01-60s interval available)
Guard Tours 3 groups ( each group 16 preset,dwell time and speed selectable)
AB scan range Support, 0-355º
AB scan speed 1-9 grades
Operating temperature (-15℃~+60℃)
Operation menu English
Auto Control IR LED PWM
Consumption ≤10W
Lightning Protection Transient voltage 6000V
Related validation IP66,CE,FCC,RoHs
IR parameters
Auto Control IR LED PWM
IR distance Up to 15 meters
LEDs 2 PCS Array 35Mil IR LED
Support ambient light detection IR illumination on 1-9 grades selectable
