Product Details:
Payment & Shipping Terms:
|
NVR: | 4CH NVR | Sensor: | 1/4" OV0130 CMOS Sensor |
---|---|---|---|
Lens: | 36pcs IR Led | IR Distance: | 20-30M |
WIFI Distance: | 100M(Open Area), Wall: 20-30M | Program: | HI3518E + OV0130 |
POE: | No | Power Supply: | DC12V |
High Light: | IP Surveillance Camera System,Wireless IP Camera Kit |

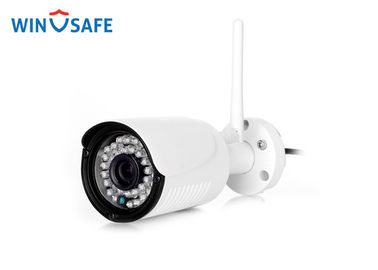

2.0 Megapixel Bullet Wireless IP Camera System , 4 Camera Wireless Security System
Packing Infomration

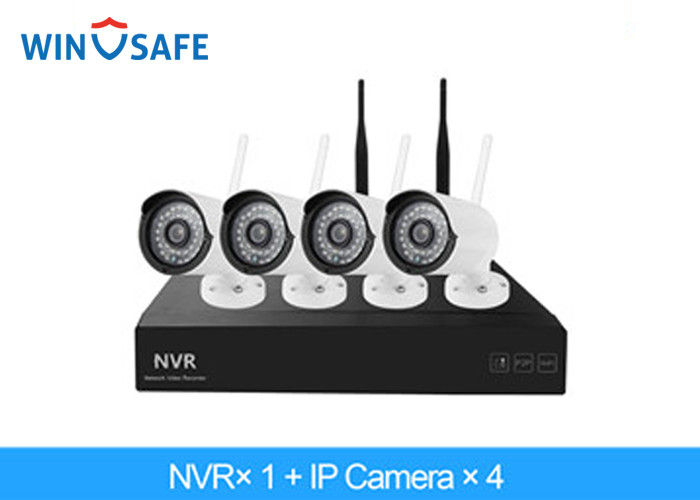

※ 4CH NVR with 2pcs Antenna
※ 960P 1.3MP wifi IP Camera:4PCS
※ Power: 5PCS
※ CD: 1PCS
※ Mouse: 1PCS
※ Screw package: 5PC
※ Simple instructions: 1PCS
Features
※ Power to the image, do not do any settings, truly fool-operation
※ 4CH WIFI NVR with 4 PCS WIFI IP camera, you can allow customers to follow their own according to their needs expand
※Support phone operator APP
※Support the post alarm, motion detection, etc.
Specification
Model No. | WS-NVK409M-13 |
Video & audio input | |
Network video input | 4CH NVR |
Video & audio output | |
HDMI output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
VGA output | 800x600,1024x768 |
Mobile phone | Support Android /Apple System |
Audio output | NO |
Video & audio code and decode parameters | |
Record resolution | D1/HD1/CIF/720P/960P/1080P |
Playback resolution | 720P 100/120FPS 1080P 50/64FPS |
Motion detection | Motion Detection |
Synchronously playback channels | 1/4CH |
Record management | |
Record & Snapshot mode | manual recording, regular recording, motion recording, alarm recording, events recording |
Playback mode | regular playback,alarm playback,motion detection playback,events playback |
Backup mode | regular backup, events backup, manual backup |
Hard driver | |
Mode | 1*SATA |
HDD capacity | each port support max 4TB HDD |
External port | |
Voice intercom | NO |
Internet port | 1PCS RJ45 10M / 100M adaptive Ethernet port |
USB port | 1*USB2.0 |
WIFI port | Built-in wireless router,With 2pcs Antenna |
WIFI Distance | 100M(Open area),Wall:20-30M |
Network Management | |
Network protocol | Built-in wireless router,With 2pcs Antenna,The image is automatically |
Other | |
Power supply | DC12V |
Power consumtion(without HDD | ≤16W |
Work temperature | (-10℃--+55℃) |
Work humidity | 10%--90% |
Case | 0.8U |
Size(W*L*H(cm)) | 280*230*57mm |
Net weight(without HDD) | 1.6kg |
Gross weight(without HDD) | 2.39kg |
Color box size(L*W*H(cm)) | 330*320*98mm |
Packing(pcs/carton) | 5 |
Carton size (L*W*H(cm)) | 50*34*35cm |
Gross weight(kg) | 12.46kg |
WIFI IP CAMERA Parameter | |
Model No. | WS-IPC-409-13 |
Program | HI3518E+OV0130 |
System structure | Embedded RTOS design,Dual-Core 32-bit DSP,Pure hardware compression, watchdog; |
Sensor | 1/4" OV0130 CMOS sensor |
Led | 36PCS IR LED |
Lens | 4.0MM 2.0MP HD Lens |
IR Distance | 20-30M |
Minimum illumination | Colo 0.001Lux@F1.2; |
Video Processing | H.264 coding,MJPEG coding AVI format;Support Stream 0.1M~16Mpbs Adjustable; |
Image Frame Rate | PAL:1~25 Frame/second,NTSC:1~30 Frame/second;Adjustable |
Video Streams | Main stream:1280*720 |
Sub-stream:704*576,640*480,352*288 | |
Audio Processing | N/A |
Network Interface | 1PCS RJ45 Ethernet port, 10m / 100M Adaptive;Support WIFI,Automatic code, automatic image |
WIFI Port | Support WIFI, With 1pcs Antenna |
WIFI Distance | 100M(Open area),Wall:20-30M |
Reset Interface | N/A |
TF card interface | N/A |
Auto Iris Interface | N/A |
Signal Interface | Support photoresistor input signal and the IR-CUT, infrared light linkage; |
POE | N/A |
Phone monitoring | N/A |
Lightning Protection | Power, network, POE comprehensive lightning,In line with national standards GB / T17626.5, International standard IEC61000-4-5. |
Working environment | (-10℃~+60℃) |
Power supply | DC12V power input(12V/1A) |
Weight | 0.5KG |
