36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System

36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System
36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System 36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System

Large Image :  36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: AC3-S3603S-IR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5 - 8 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000PCS/Month
Detailed Product Description
Weight: 2.0kg Ingress Protection: IP66
Protocol: Pelco-D / Pelco-P Voltage: DC9V-36V
Resolution: 550TVL Video System: PAL/NTSC
Optical Zoom: 36X Focus: Auto/Manual
High Light:

marine security cameras

,

boat security camera

36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System

Features
※ Aluminum housing
※ IP66 weatherproof
※ Digital image stabilization
※ Efficient 60M IR distance
※ Wide range of voltage input
※ Sony 28x/36x zoom module, D/N
※ Self-adaption of protocol & baud rate
※ Image flip for stand/suspended installation
※ Special design of drive system, PTZ positioning prcision up to +/-0.05 degree  AC3S-3603S-IR

Technical Specification


Model No. AC3-S3603S-IR AC3-S2801S-IR
Camera
Image Sensor 1/4" SONY EX-View HAD CCD
Effective Pixel PAL: 752(H) x 582(V); NTSC:768(H) x 494(V)
Resolution 550TVL
Video System PAL/NTSC
Optical Zoom 36X 28X
Digital Zoom 12X
Min Illumination Color Mode: 1/60 mode: 1.4Lux; 1/4s mode: 0.1Lux
BW Mode: 0.1Lux(Lights On); 0.01Lux(Lights off)
Color Mode: 1/60 mode: 0.25Lux; 1/4s mode: 0.16Lux
BW Mode: 0.1Lux(Lights On); 0.0015Lux(Lights off)
White Balance Auto
Focus Auto/Manual
Exposure Auto/Manual
S/N Ratio Not less than 50DB
BLC On/Off
WDR On/Off No
Digital Noise Reduction 1-5 steps/Off
Day/Night Auto/Manual
Lens F1.6 - F4.5, f=3.4 - 122.4mm F1.35 - F3.7, f=3.5 - 98mm
View Angle 57.8°(wide) to 1.7°(tele) 55.8°(wide) to 2.1°(tele)
PTZ
Pan Range 360° Continuous
Pan Speed 0.1° - 60°/s, adjustable
Tilt Range -15° - 90°(Auto Flip)
Tilt Speed 0.2° - 60°/s, adjustable
Preset 256
Preset Predicion ±0.05°
IR Light
IR Wave Lenth 850nm
Range 60m
Switch Auto/Manual
General
OSD English
Comm. Interface RS485
Protocol PELCO-P / PELCO-D(self-adaptive)
Adress 0 - 255
Video Output CVBS
Baud Rate 2400bps, 4800bps, 9600bps, 19200bps(self-adaptive)
Power Consumption 0.5W(Standby); 20W(Max)
Working Temperature -35°C - +65°C
Voltage DC9V - 36V
IP Code IP66
Dimensions Standard(Without Damper) Φ136(mm) x 185(mm)
Weight Standard(Without Damper) 2.0(±0.2)kg

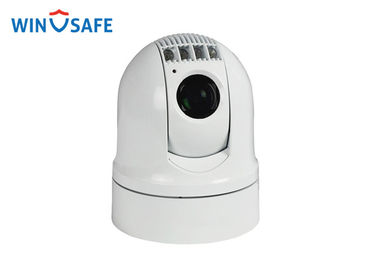

36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System 0

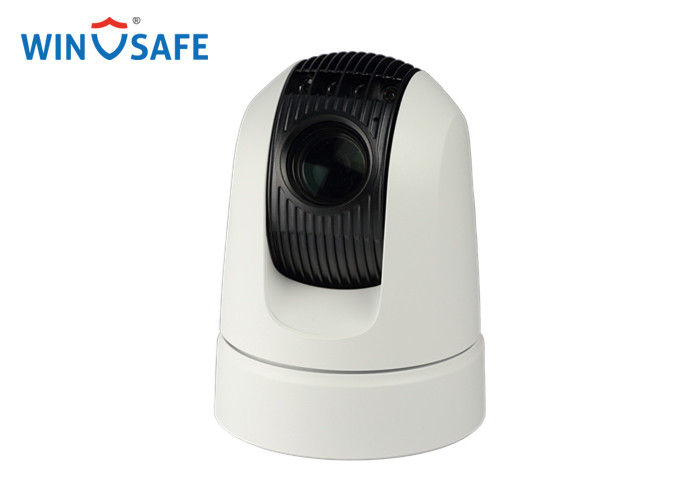

36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System 1
Dimensional Drwing

36X AC3 Analog CVBS Sony Module PTZ Camera IR With PAL / NTSC System 2

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days


Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
