Product Details:
Payment & Shipping Terms:
|
| Pixel: | 12MP | Optical Zoom: | 35X |
|---|---|---|---|
| Digital Zoom: | 2X | Minimum Lux: | 0.01Lux |
| BLC: | ON/OFF | Video Freeze: | Optional |
| POE: | Supported | Video Encoding: | H.264/H.265 |
| High Light: | hd pan tilt zoom camera,full hd security camera |
||

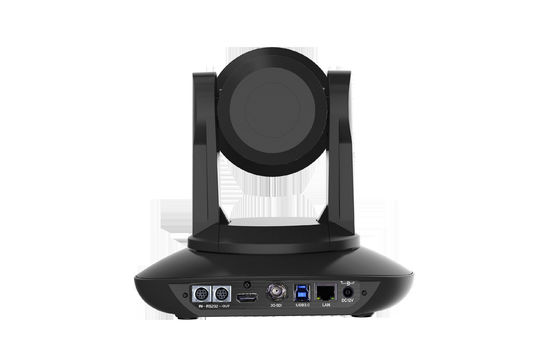

4K UHV 35X Optical Zoom 60° FOV 3840X2160 HD PTZ Video Conference Camera POE Optional
Feature
※ 3840X2160P30 ULTRA HD VIDEO RESOLUTION
※ Adopts most advanced ISP, 1/1.7" inch 12MP sensor, provide Ultra high definition crystal clear image with full details
※ 4K WIDE ANGLE OPTICAL LENS:35X OTPICAL ZOOM,60 DEGREEE FIELD OF VIEW
※ 4K VIDEO OVER IP, AND SUPPORT H.264,H.265 ENCODING
※ Meanwhile, HDMI, SDI, USB outputs as well, fit for different application
※ POE SUPPORTED
※ One single cable allows video transmission, camera control as well as power supply
※ HIGH PRECISE MOTOR POSITIONING
※ -170° to +170° pan rotation, -30° - 90° tilt rotation, quiet & smooth mechanism movement, accurate & fast focus, capture every details in whole space
※ STANARD SONY VISCA OVER SERIES AND SONY VISCA OVER IP SUPPORTED
Specification
| Model No. | UHV-500-H | |||
| Camera | ||||
| Sensor | 1/1.7" 12MegapixelCMOS Sensor | |||
| Video System | HDMI | IP | SDI | USB |
| 3840x2160p30/25 1080p60/50/30/25 720p60/50/30/25 108i60/50 | Main Steam: 3840x2160p30 1920x1080p60 Sub Steam: 1280x720,704x576 640x480,352x288 | 1080p60/50/30/25 720p60/50/30/25 1080i60/50 | USB 3.0: 1080p60/50/30/25 720p60/50/30/25 USB 2.0: 1024x576p30 960x540p30 640x360p30 352x288p30 | |
| Zoom | 35x optical zoom + 2x digital zoom | |||
| View Angle | 2.02° (wide) - 60° (tele) | |||
| Focal Length | f=5.8(Near) - 203(Far) | |||
| SNR | Above 50dB | |||
| Minimum Lux | 0.01Lux | |||
| Focus | Auto/Manual | |||
| Min.Focus Distance | Wide: 0.3m Tele:1.5m | |||
| Iris | Auto/Manual | |||
| Iris No. | Wide: 1.5 Tele: 4.8 | |||
| White Balance | Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor | |||
| Electric Shutter | Auto/Manual | |||
| BLC | ON/OFF | |||
| Noise Reduction | 2D & 3D | |||
| D/N Mode | Supported | |||
| Gamma | Supported | |||
| Mirror Image | Supported | |||
| PanTilt Flip | Supported | |||
| Anti Flicker | 50Hz/60Hz/OFF | |||
| Video Freeze | Optional | |||
| Mechanical | ||||
| Preset | 10 via remote controller; 128 via serial port | |||
| Pan Rotation Angle | - 170° - +170° | |||
| Tilt Roation Angle | - 30° - + 90° | |||
| Pan Rotation Speed | 0° - 120° /s | |||
| Tilt Rotation Speed | 0° - 80° /s | |||
| Port | ||||
| Control Port | RS232(Sony Visca), RJ45(Onvif) | |||
| Video Port | HDMI/RJ45/SDI/USB3.0 | |||
| Power | DC12V,2A | |||
| POE | Supported | |||
| Encoding | ||||
| Video Encoding | H.264/H.265 | |||
| Bit Rate Control | Variable Bit Rate, Constant Bit Rate | |||
| Video Bit Rate | 1024Kbps - 30720Kbps | |||
| Frames | 50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps (3840 x 2160 max.30fps) | |||
| IP Protocol | TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP | |||
| General | ||||
| OSD Menu | English/Chinese | |||
| Dimension | 220mm x 173mm x 117mm | |||
| Package | 320mm x 300mm x 310mm | |||
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
