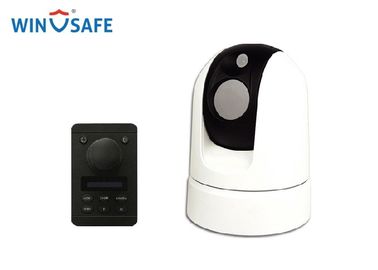

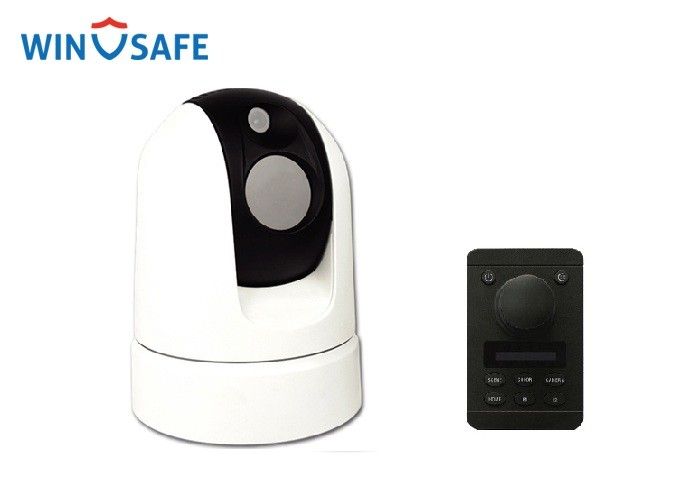

640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range

640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range
640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range 640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range

Large Image :  640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: PATC - DZ619(G)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Detailed Product Description
Network Resolution: Max.1920 X 1080@30fps Video Compression: H.264
Network Protocol: HTTP, RTSP,TCP,UDP,ONVIF Dual Stream: Support
Comm. Interface: RS485 Power Supply: DC10.8 - 28V
IP Code: IP66 Weight: 2.1kg
High Light:

mobile ptz camera

,

rugged surveillance camera

IP + SDI 25mm / 40mm un-cooled 640 x 480 Dual Payload Thermal PTZ Camera/PATC-D613(G)/D619(G)



Features


※ Uncooled Amorphns Silicon FPA, resolution: 384x288/640x480
※ 1/2.8" CMOS color visual camera, 2.14MP
※ Dual HD-SDI outputs for color visual camera and thermal imaging camera
※ Dual H.264 output for color visual camera and thermal imaging camera
※ Optical digital Gyro for image stabilization
※ Wide Dynamic Range(WDR)
※ Day/Night(ICR)
※ Soft PTZ address, self-adaption of protocol and baud rate
※ 10.8 - 28V wide range voltage input
※ Waterproof index: IP66
※ Auto power-off with low power supply


Technical Specification





Model No. PATC-DZ313(G) PATC-DZ319(G) PATC-DZ613(G) PATC-DZ619(G)
Thermal Imaging Camera
Sensor Type Uncooled Amorphns Silicon FPA
Resolution 384 x 288 640 x 480
Sensor Size 17μm
Aperture 0.9
Focus Fixed
Image Frame Rate 50HZ(PAL) / 60HZ(NTSC)
NETK(300K) ≤60mk
Angular Resolution 1.3 Mrad
FOV 13mm: 28.2° x 21.3° 19mm: 19.5° x 14.7° 13mm:45.4° x 34.8° 40mm: 32.5° x 24.5°
Detecting Range Vehicle: 1758m Man: 380m Vehicle: 2570m Man: 550m Vehicle:1758m Man:380m Vehicle: 2570m Man: 550m
Recognition Range Vehicle: 439m Man: 95m Vehicle: 640m Man: 130m Vehicle:439m Man:95m Vehicle: 640m Man: 130m
Video Display Black Hot / White Hot
Digital Zoom 1X,2X,4X
Daylight Imaging Camera
Video Sensor 1/2.8" Progressive Scan CMOS
Image Sensor 2.14MP
Signal System(NET) 1080P/30,1080P/25,720P/60,720P/50,720P/30,720P/25
Signal System(SDI) 1080P30,1080I60,720P60,720P30,1080P25,1080I50,720P50,720P25
Lens Manual Fixed Focus
WDR On/Off
DNR 1 - 5 Step/Off
Day/Night Auto/Manual
PTZ
Pan Range 360° Continuous
Pan Speed Control speed: 0.04° - 100°/s; Preset speed: 100°/s
Tilt Range -15° - 90°(Auto Flip)
Tilt Speed Control:0.2° - 60°/s, adjustable; Preset Speed: 60°/s
Preset 256
Preset Predicion ±0.2°
Digital Gyro 1 Axis(Optional)
Network
Image Resolution 1920*1080 @ 30fps
Image Compression H.264
Audio Compression AAC
Protocols HTTP, RSTP,TCP,UDP,ONVIF
Simultaneous Live View Up to 10
Dual Stream Yes
Ethernet Interface 10 / 100M
Audio Interface 1 LINE IN
General
Menu Language English
Control Interface RS-485
Adress 0 - 255
Comm Protocol PELCO-P/PELCO-D(Self-Adaptive)
Baud Rate 2400bps, 4800bps,9600bps,19200bps(Self Adaptive)
Voltage DC 10.8 -28V
Power Min:12W; Max: 25W
Working Temperature -30°C - +55°C
IP Code IP66
Dimensions Φ135.9(mm) x 192(mm)
Weight 2.1kg





Dimensional Drwing





640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range 0





Application



640 X 480 Dual Payload PTZ Thermal Camera With Wide Dynamic Range 1
