| Optical Zoom: | 20X / 30X | Digital Zoom: | 10X |
|---|---|---|---|
| DSP: | HI3516C / HI3516D | IR Distance: | 150 Meters |
| Pixel: | 200W / 500W | PWM Function: | Support |
| Resolution: | 1080P | Power: | DC12V 3A |
| High Light: | full hd surveillance cameras,hd pan tilt zoom camera |
||

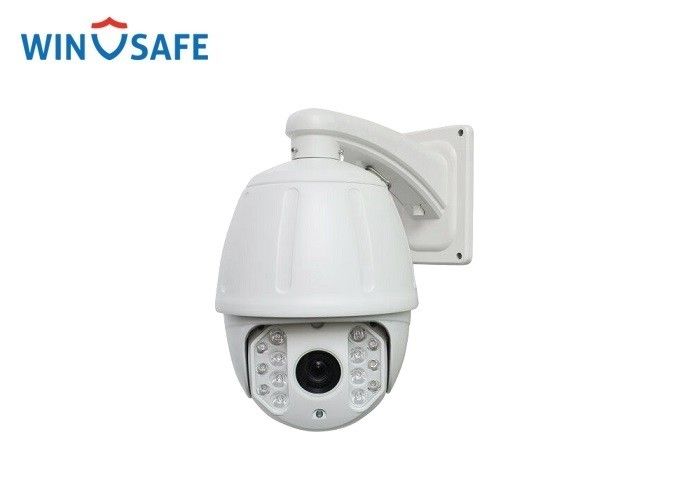

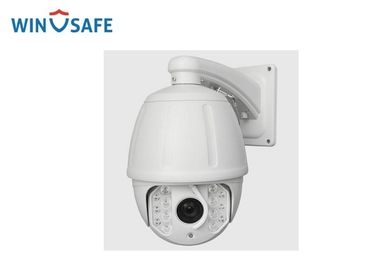

7" Metal PTZ High Speed Dome Camera Waterproof IP66 1080P Onvif 2.2 Compatible
Feature
※ 7" double layer body construction,IP66
※ 1/3" CMOS, 2.0/5.0 Megapixels, 20x / 36x optical zoom
※ HD-IP digital interface output, 1080P high definition image
※ PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
※ IR distance up to 150M, 14 Pcs Array 42Mil LEDs.
※ Support P2P function
※ ONVIF2.2 compatible
※ Compatible with DAHUA , HIKVISION , XM and most of NVR.
※ Compatible with CMS, UC2, Milestone, VMS, NUUO and AXXON platform.etc
Specification
| Model No. | WS-BT816 | ||
| DSP | HI3516C | HI3516D | HI3516D |
| Sensor | 1/3" Sony IMX323 | 1/3" AR0521 | 1/3" Panasonic34229 |
| Pixel | 200W | 500W | 200W |
| Resolution Ratio | 1920*1080@25fps / 1920*1080@30fps | 2592*1944@15fps / 2592*1944@22fps | 1920*1080@25fps / 1920*1080@30fps |
| Lens | f=4.7mm-94mm | f=4.7mm-94mm | f=4.6mm-165mm |
| Optical Zoom | 20X | 20X | 36X |
| Digital Zoom | 10X | ||
| Min. illumination | Color: 0.1Lux B/W: 0.01Lux / IR ON:0 Lux | ||
| D/N | IR-CUT | ||
| AGC | Auto/manual | ||
| WB | Auto/manual/indoor/outdoor | ||
| S/N Ratio | ≥50dB | ||
| Rotation Range | Pan: 0°~360° Tilt: 0°~93° | ||
| Horizontal Rotation Speed | 0.02°/s-45°/s | ||
| Tilt Rotation Speed | 0.02°/s-30°/s | ||
| Auto Flip | Horizontal 180°, Vertical 93° | ||
| A-B Scan | User programmable | ||
| A-B Scan Speed | 1-9 levels setting available | ||
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | ||
| Software Control | IE, CMS, Management Platform | ||
| Network Security | HTTPS,802.1X,IP ADDRESS FILTERING | ||
| Quick Command | PELCO instruction set | ||
| Mobile View(optional) | Support android/ios smart phone | ||
| APP | Hisee | ||
| Video Compression | H.264/H.265/M-JPEG | ||
| Audio compression | G711,PCM | ||
| Audio Frequency | Optional | ||
| Dwell Preset | 1-60s interval available | ||
| Preset Points | 220 | ||
| Go to Preset Speed | 1-64 levels available | ||
| PWR On Action | Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None | ||
| Park Time | 1-60mins available | ||
| Guard Tours | 3 groups | ||
| Guard Points | Max.16 points, dwell time user selectable | ||
| Operation menu | English etc | ||
| Pan and Tilt position display | Support | ||
| Auto Control IR LED | PWM | ||
| LEDs | Array 42Mil, 3 pcs Laser led+6 pcs IR led | ||
| Lightning Protection | Transient voltage 6000V | ||
| IR distance | Up to 150 meters | ||
| Support ambient light detection | IR illumination on 1-9 grades selectable; | ||
| Operating temperature | Outdoor: -40°~ +60° | ||
| Operating Humidity | ≤95% Non Condensing | ||
| Power | DC12V 3A | ||
| Consumption | ≤15W | ||
| Ingress Protection | IP66 | ||
| Packing Case Size | 31cm x 31cm x 44cm/PCS(L*W*H) / 64cm x 31cm x 45cm/2PCS (L*W*H) | ||
| Weight | N.W 5.6KG/G.W 7KG | ||
Dimension drawing
