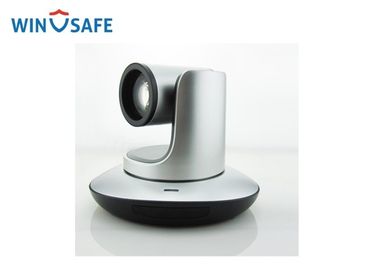

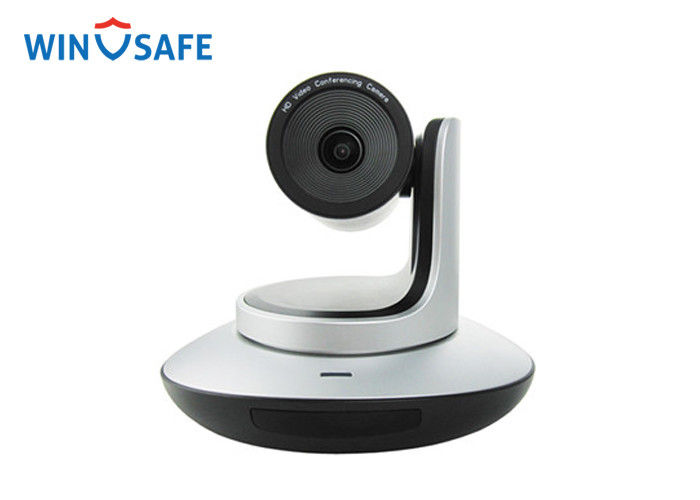

Ambarella A9 DSP PTZ HD Camera , 12MP 12X Video Conferencing Equipment

Ambarella A9 DSP PTZ HD Camera , 12MP 12X Video Conferencing Equipment
Ambarella A9 DSP PTZ HD Camera , 12MP 12X Video Conferencing Equipment Ambarella A9 DSP PTZ HD Camera , 12MP 12X Video Conferencing Equipment

Large Image :  Ambarella A9 DSP PTZ HD Camera , 12MP 12X Video Conferencing Equipment

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: UHV-20X-S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Detailed Product Description
Sensor: 1/2.3" High Quality HD CMOS Resolution: 12MP
Digital Zoom: 2X Optical Zoom: 12X
Video System: DVI / 3G-SDI / CBVS Port Pan Rotation Angle: -170° - +170°
Tilt Rotation Angle: -30° - +90° Interface: 3G-SDI / DVI / CVBS
High Light:

full hd surveillance cameras

,

full hd security camera

Ambarella A9 DSP PTZ HD Camera , 12MP 12X Video Conferencing Equipment

Advantages

※ Super high video quality: with advance 1/2.86 8MP Sensor and high quality 20x lens
※ Fast switching between different video formats: only 4 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Daisy Chain function: with both Visca in and Visca out port
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time

Features

※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 20X optical Zoom +12X Digital Zoom
※ 1920x1080p 60fps high resolution
※ 57.4° ultra wide FOV
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Effective 3D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls

Technical Specification



Model No. UHV-20X-S
Sensor 1/2.86 inch high quality, 8MP HD CMOS Sensor
Video System DVI Port 3G-SDI Port CVBS port(optional)
1080p60/50/30/25;
1080i60/50
720p60/50/25
1080p60/50/30/25;
720p60/50/30/25
Analog Video
Zoom 20x optical zoom + 12x digital zoom
View Angle 3.2°(wide) - 57.4°(tele)
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 35° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128
Control Port RS232/RS485
Video Port DVI-I, 3G-SDI, CVBS
SNR 75dB
Focal Length f=4.7(wide) - 94mm(tele)
Minimum Lux 0.2Lux(Day), 0.1Lux(Night), 0.005Lux(DSS on)
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
BLC Auto/Manual
Input Voltage DC12V
Dimension(W x H x W) 220mm x 173mm x 117mm
Net Weight 1.25KG



Application

HD PTZ Video Coneference Camera are good used on video conference system, Telemedicine, Education Recordered, Church etc.
