Product Details:
Payment & Shipping Terms:
|
| Comm. Interface: | RS-485 | Video Interface: | HD-SDI |
|---|---|---|---|
| Address: | 0-255 | Preset: | 256 |
| IR Wave Length: | 850nm/950nm | Range: | 60m/30m |
| Switch: | Auto/Manual | Angle Field Of View: | 59.4°-2.9° |
| High Light: | full hd surveillance cameras,full hd security camera |
||

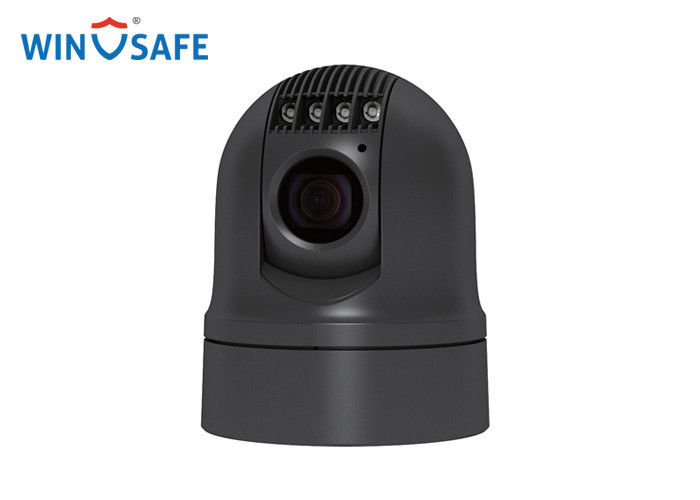

Full Digital Video Vehicle PTZ Camera HD High Performance Built-In Defogger
Features
※ 2.14MP HD sensor, supporting 1080p,1080i,720p output, full digital video technology
※ HD-SDI for transfer of HD video
※ Efficient 60M IR lighting, excellent night vision performance
※ Portable with compact design & high reliability
※ Optional damping system
※ WDR supported
※ Built-in defogger
※ Self-adaption of Protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off which low power supply
Technical Specification
| Model No. | CAHC-A2001-IR |
| Camera | |
| Image Sensor | 1/2.8" Exmor CMOS |
| Effective Pixel | 2.14MP |
| Video Output | HD: 1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25 |
| Min.Illumination | Color: 0.5Lux; B/W: 0.1Lux |
| White Balance | Auto |
| Focus | Auto / Manual / PTZ Trigger |
| Exposure | Auto / Shutter priority |
| S/N Ratio | 50 Db |
| BLC | On / Off |
| WDR | On / Off |
| Digital Noise Reduction | 1 - 5 Steps / OFF |
| Day/Night | Auto / Manual |
| Lens | |
| Optical Zoom | 20X |
| Digital Zoom | 12X |
| Focal | f = 4.7 - 94mm |
| IRIS | F 1.6 - F3.5 |
| Angle Field of View | 59.4° - 2.9° |
| PTZ | |
| Pan Range | 360° Continuous |
| Pan Speed | Control speed: 0.3° - 80°/s, adjustable; Preset speed:80°/s |
| Tilt Range | - 15 ° - 90°( Auto Flip) |
| Tilt Speed | Control speed: 0.3° - 35°/s, adjustable; Preset speed: 35°/s |
| Preset Number | 256 |
| Preset Precision | ±0.2° |
| IR Light | |
| IR Wave Length | 850nm / 940nm |
| Range | 60m(850nm) / 30m(940nm) |
| Switch | Auto / Manual |
| General | |
| OSD Lanuage | English |
| Comm. Interface | RS-485 |
| Video Interface | HD: HD-SDI |
| Protocol | 2400bps, 4800bps,9600pbs,19200bps(self-adaptive) |
| Address | 0-255 |
| Voltage | DC10.8-28V |
| Power | 8W(Standby); 25W(Aux lights ON, defogger ON, and P/T runing continuously) |
| Working Temperature | -30°C - +65°C |
| IP Code | Magnet / Fixed / Fixed with Damper |
| Dimensions | Φ130(mm) x 163(mm) w/o damper; Φ140z(mm) x 199(mm) with damper |
| Weight | Fixed Mount: 1.7kg; Magnet Mount: 1.6kg; Fixed with damper: 2.1kg |
Dimensional Drwing
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
