OSD Menu: | Yes | Field Of View: | 72.5° - 6.3° |
---|---|---|---|
Zoom: | Optical 12X, Digital 12X | IP Version: | Yes |
Focal: | F = 3.9mm - 46.8mm | Image Flip: | Yes |
Color: | Grey | Auto Tracking: | Yes |
High Light: | hd pan tilt zoom camera,full hd security camera |

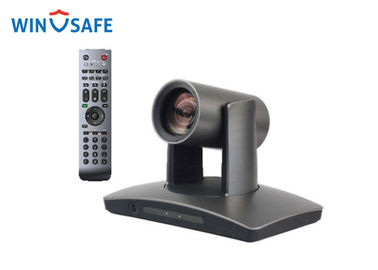

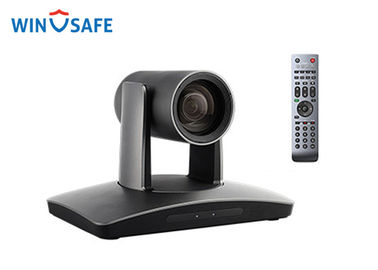

Full HD Grey 1080P IP Auto Tracking PTZ Video Conference Camera With OSD Menu
Techinical specification
Model No. | AMC-E200N |
Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
Video Standard(HD) |
1080p/60,1080/30,1080i/60,720p/60,720p/30,1080p/50,1080p/25,1080i/50, 720p/50,720p/25 |
Focal | f = .3.9mm -46.8mm |
IRIS | F1.6 - F2.8 |
Zoom | Optical: 12X, Digital: 12X |
Field of View | 72.5° - 6.3° |
Focus | Auto, Manual, PTZ Trigger AF, One push |
Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
Shutter Speed | 1/1 - 1/10,000s |
AGC | Auto/Manual |
White Balance | Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium, Fluorescent |
AE Control | Auto, Manual, Shutter Priority, Iris Priority,Intelligence |
BLC | Yes |
WDR | Yes |
Noise Reduction | 2D/3D |
PTZ | |
Pan Range | -170° - +170° |
Tilt Range | -30° - +90° |
Pan Speed | 0.1° - +120°/s |
Tilt Speed | 0.1° - +80°/s |
Preset Number | 256 |
OSD | Yes |
Image Flip | Yes |
Network | |
Max,Image Size | 1920x1080 @60fps |
Frame Rate | HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080) |
Video Compression | H.265,H.264 |
Audio Compression | AAC |
Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
Dual Stream | Support |
Simultaneous Users | up to 10 users |
Interface | |
HD Video Output Interface | DVI-D,HD-SDI |
Control Interface | RS-232IN/IR, RS-232OUT/RS-485 |
Ethernet | RJ45,100M |
General | |
Control Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P |
Address | 0 - 63 |
Power Supply | DC12V |
Working Temp | 0°C - +40°C |
Storage Temp | -20°C - +60°C |
Dimension | 243mm x 145mm x 163mm |
Weight | 1.2KG |
Color | Grey |
Features
※ H.265 video compression,dual stream
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 72.5°FOV,12X Optacal zoom,12X digital zoom
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,
※ Special mechanical PTZ driving system,ensure precise positioning
Unmanned and standalone tracking
Tracking performance is realized by the system itself, both its two lens manage the tracking algorithm, there is no need to have manual operation or have extra devices/sensors to assist tracking
Precise Lock and track capability
Tracking is based on both face detection and motion detection technologywhich ensures smooth and precise lock & track performance even in comprehensive scenarios
Smart Tracking Performance
The system dose not track on minor movenments, it has tilt motion and auto zoom function to keep tracking person once person moves closer/farther, onece object is lost, the system moves back to pre-defined position and keeps tracking at that position
Priority Tracking Zone and Blocking Zones
The system provides one configurable priority tracking zone where the tracked lecturer is picked up, there are also eight blocking zones used to block interface sources like projectors, windows, fans ane etc.
Easy Connecton, Configuration and Communication
The system comes only with HD-SDI video interfaces, power and control interfaces, it is easy to connnect your system. The system provides a free PC based control software to manager tracking and other configuration. It support standard VISCA & Pelco D protocols to communicate seamlessly with your control device.
Application
Dimensional Drawing
