Product Details:
Payment & Shipping Terms:
|
| Pixel: | 2MP | Resolution: | 1920*1080 |
|---|---|---|---|
| Optical Zoom: | 12X | Digital Zoom: | 4X |
| ONVIF: | Support | HDMI: | Support |
| 3G-SDI: | Support | FOV: | 72.5° -6.3° |
| High Light: | full hd surveillance cameras,full hd security camera |
||

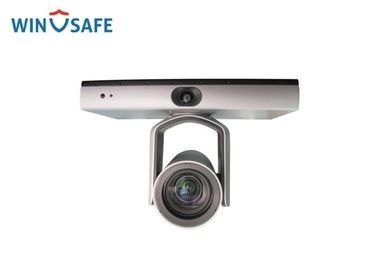

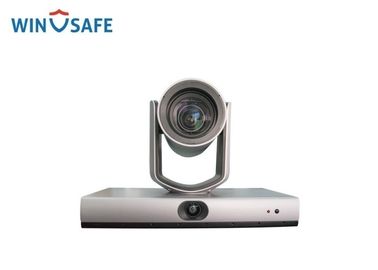

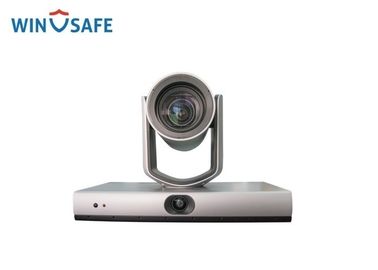

IP&HDMI&3G-SDI&USB Wide FOV 12X 2MP HD Single Speaker Tracking Camera
AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up image and full-view image to frame the speaker(s). It frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.
Features
※ 1/2.8" Exmor CMOS, 2MP
※ 12x optical zoom, up to 72.5 degree FOV
※ Simultaneously output 3G-SDI, HDMI, USB2.0, Ethernet, up to 1080P60 resolution
※ Support H.264/H.265 video compression
※ Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers, support AEC
※ Automatically switch between close-up image for speaker(s) and wide-angle image for all attendees
※ Built-in switch rules according to actual meeting scenes
Technical Specification
| Model No. | AMC-G200TH |
| Image Sensor | 1/2.8" Exmor CMOS, 2 MP |
| Video Standard(HD) | 1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50 |
| Focal | f = 3.9mm - 46.8mm |
| IRIS | F1.6 - F2.8 |
| Zoom | Optical: 12X, Digital: 12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One push |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/25 - 1/10,000s |
| AGC | Auto/Manual |
| White Balance | Auto, Indoor, Outdoor, One push,Manual, Auto Track |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority |
| S/N Ratio | Above 50dB |
| DNR | 2D/3D |
| BLC | Support |
| Full-View Camera | |
| Image Sensor | 1/2.5" 4K CMOS, 8.57MP, 2.8mm |
| Lens | Prime lens, 4X Digital Zoom |
| Field of View | 98° |
| Video Adjustments | Support EPTZ |
| PTZ | |
| Pan/Tilt Range | -90° - +90°; -30° - +90° |
| Preset Number | 64 |
| Network | |
| Max,Image Size | 1920x1080 @ 60fps |
| Video Compression | H.265,H.264 |
| Audio Compression | AAC |
| Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
| Steam | Support 1 Tracking, 1 Full-view, 1 Switching, three steams in total |
| Interface | |
| Video Output Audio Input |
1 x HDMI interface, 1 x 3G-SDI Interface, 2 x LINE IN, including one channel with EC |
| Audio Output | 1 x Line out |
| Network Interface | 1 x 10M/100M |
| USB Interface | 1 x USB2.0, Support UVC/UAC |
| Control Interface | 1 x RS-232 |
| General | |
| Control Protocol | VISCA |
| Address | 1 - 6 |
| Power Supply | DC12V |
| Power Consumption | Below 20W |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 245mm x 145mm x 165mm |
| Weight | Below 2kg |
Application scene
