Product Details:
Payment & Shipping Terms:
|
| Power Supply: | USB 3.0 | Optical Zoom: | 5X |
|---|---|---|---|
| Resolution: | 1920 X 1080 | Video Interface: | USB 3.0 |
| Contorl Interface: | RS232 IN | Sensor: | 5MP |
| View Angle: | 85° | Net Weight: | 0.8kg |
| High Light: | full hd surveillance cameras,full hd security camera |
||

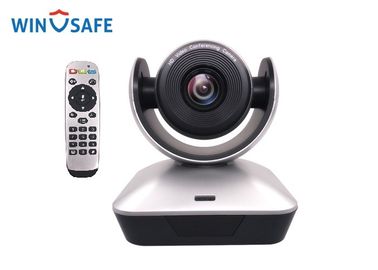

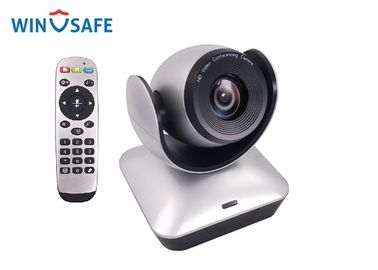

USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°
A totally plug&play, one single USB3.0 cable feeding video, control and power. With 5x, 85° FOV lens, perfect for huddle room video conferencing solution
Adopted advanced ISP, 1/2.8 inch SONY sensor
5xoptical zoom+ 12x digital zoom, 85° FOV
Using multi-element 5x lossless optical zoom lens, with 85 degree super wide angle FOV, along with 340degree pan&120degree tilt rotation at adjustable speed and smooth movement, fast&accurate focus to capture any view in conferencing space.
Totally Plug&Play
Video, control and power over single USB3.0 cable;
Standard UVC1.5 protocol, works with Windows, Mac OS, Android, Linux
Flexible Compatibility
Compatible with most leading video conferencing software and platform, Zoom.us, Skype4business, Viydo, Bluejeans, Polycom, Lifesize, Webex, Google Hangout, Adobe ect, at different operation system Windows, Mac, Android and Linux.
And FECC (far-end camera control) supported via the software.
RS232/RS485/UVC control.
Standard Sony Visca and UVC1.5 protocol, users can control the camera via both RS232 (RS485) and USB port.
128 presets through RS232 control and 10 presets by remote controller.
Field upgradable for firmware via RS232&USB port easily.
Multiple Installation Way
Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling
Feature
※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor and high quality 10x lens
※ 1920 x 108030(YUY2) high definition
※ 5X optical zoom + 12x digital zoom, 85°field of viewing
※ WDR, 3DNR, BLC, Anti-flicker adjustable via OSD menu for different environment
※ Totally Plug & Play: video, control and power over single USB 3.0 cable
※ USB 3.0 YUY2 video format, works with Windows, Mac OS, Android, Linux
※ Standard UVC1.5 protocol, seamlessly compatible with most VC application
※ Ultra smooth PTZ mechanism, accurate PT motor control
※ Effective RS232/485 series control, UVC control(via USB3.0 port)
※ Flexible mounting: fit for monitor/PC, tripod and on desk mounting
Specification
| Model No. | UHV-5X-U3 |
| Sensor | 1/2.8 inch high quality, 5MP HD CMOS Sensor |
| Video System | USB 3.0 mode: 1920 x 1080p@30/25, 1280x720p@60/50/25 USB 2.0 mode: 1280 x 720@25, 960x540@30, 704x576@30,360x640@30, 352x288@30 |
| Zoom | 5x optical zoom + 12x digital zoom |
| View Angle | 85° |
| Focal Length | f = 3.1 - 15.5mm |
| Minimum Lux | 0.1Lux |
| S/N Rate | Above 50dB |
| White Balance | Auto/Manual/Indor/Outdoor |
| Electronic Shutter | Auto/Manual |
| Anti Flicker | 50Hz/60Hz/OFF |
| BLC | ON/OFF |
| Pan Rotation Angle | - 170° - +170° |
| Tilt Roation Angle | - 30° - + 90° |
| Pan Rotation Speed | 0° - 120° /s |
| Tilt Rotation Speed | 0° - 80° /s |
| Preset | 128 |
| Control Port | USB3.0/RS232 |
| Video Port | USB3.0 |
| Input Voltage | DC5V( USB 3.0 Port) |
| Net Weight | 0.8KG |
Application
