Product Details:
Payment & Shipping Terms:
|
Weight: | 2.0kg | IP: | Support |
---|---|---|---|
Ingress Protection: | IP66 | SD: | Support |
Resolution: | 1920*1080 | SD Format: | PAL/NTSC |
Optical Zoom: | 20X | Video Compression: | H.265/H.264 |
High Light: | boat security camera,marine surveillance camera |

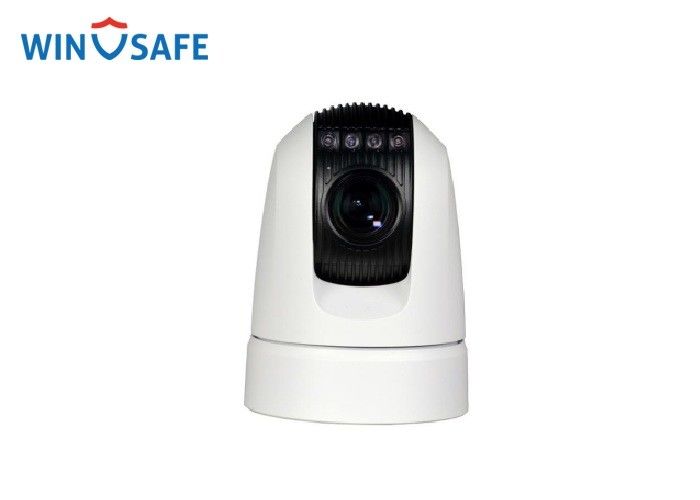

Military / Marine Weatherproof IP66 High Speed IP Dome Camera 20X Optical Zoom Support Onvif
With aluminum housing and ingress protection IP66, it apts for military and marine. Even in tough environment, it is strong enough to bear.
Features
※ 1/2.8” CMOS, 2.14MP, 20X optical zoom;
※ Network video maximum support 1080P30;
※ Support CVBS standard clear video output;
※ Support H.265, H.264 video compression, support dual stream;
※ Support multi level video quality configuration;
※ ONVIF & RTSP Compliant;
※ Efficient 60m IR distance;
※ Wide dynamic range, ICR day/night;
※ Soft PTZ address, protocol and baud rate self-adpative;
※ Waterproof index: IP66;
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.
Technical Specification
Model No. | AC3-A2001N-IR |
Camera | |
Image Sensor | 2.14MP,1/2.8" CMOS |
Active Pixel | 1920(H) x 1080(V) |
Signal Sytem(NET) | HD:1080p30 / 1080p25 / 1080i60 / 1080i50 / 720p60 / 720p50 / 720p30 / 720p25 |
Signal System(SD) | PAL / NTSC |
Min.Illumination | Color: 0.5Lux; B/W:0.1Lux |
White Balance | Auto / Manual |
Focus | Auto / Manual |
Exposure | Auto / Manual |
S/N Ratio | Note less than 50 Db |
BLC | On / Off |
WDR | On / Off |
Digital Noise Reduction | 1 - 5Steps/OFF |
Digital Image Stabilization | No |
Day/Night | Auto / Manual |
Lens | |
Optical Zoom | 20X |
Digital Zoom | 12X |
Lens | f=4.7mm - 94mm |
IRIS | F1.6 - F3.5 |
View Angle | 59.4° (wide) to 2.9° (tele) |
PTZ | |
Pan Range | 360° Continuous |
Pan Speed | 0.1° - 60°/s, adjustable, Preset Speed: 60°/s |
Tilt Range | - 15 ° - 90° with auto flip |
Tilt Speed | 0.2° - 60°/s, adjustable, Preset Speed:60°/s |
Preset Number | 256 |
Preset Precision | ±0.2° |
IR Light | |
IR Wave Length | 850nm |
Range | 60m |
Switch | Auto / Manual |
Network | |
Image Resolution | 1920 x 1080@30fps |
Image Compression | H.264, H.265 |
Audio Compression | AAC |
Protocol | HTTP, RTSP, TCP, UDP, ONVIF |
No.of User Access | Up to 10 |
Dual Stream | Support |
Interface | |
Audio Interface | 1 Line in, 1 Line out |
Video Output(SD) | CVBS1.0V(p-p)/75Ω PAL or NTSC(optional) |
Ethernet Interface | RJ45, 10/100M |
Comm. Interface | RS-485 |
General | |
OSD Lanuage | English |
Address | 0 - 255 |
Comm.Protocol | PELCO-P / PLECO-D(self-adaptive) |
Protocol | 2400bps, 4800bps,9600pbs,19200bps(self-adaptive) |
Voltage | DC 10.8 - 28V |
Power | Min: 9W; Max: 20W |
Working Temperature | -35°C - +65°C |
IP Code | IP66 |
Dimensions | Standard(Without Damper): Φ136(mm) x 185(mm) |
Weight | Standard(Without Damper): 2.1(±0.2)kg |
Dimensional Drwing
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
