| Sensor Type: | Uncooled Amorphns Silicon FPA | FOV: | 40mm |
|---|---|---|---|
| Thermal Camera Resolution: | 640 X 480 | Thermal Digital Zoom: | 1X,2X,4X |
| Day Zoom: | Optical 20X, Digital 12X | WDR: | ON/OFF |
| Pan Range: | 360° Continuous | Preset: | 256 |
| High Light: | mobile ptz camera,rugged security camera |
||

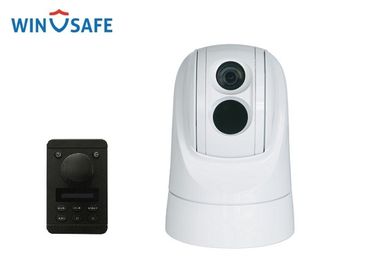

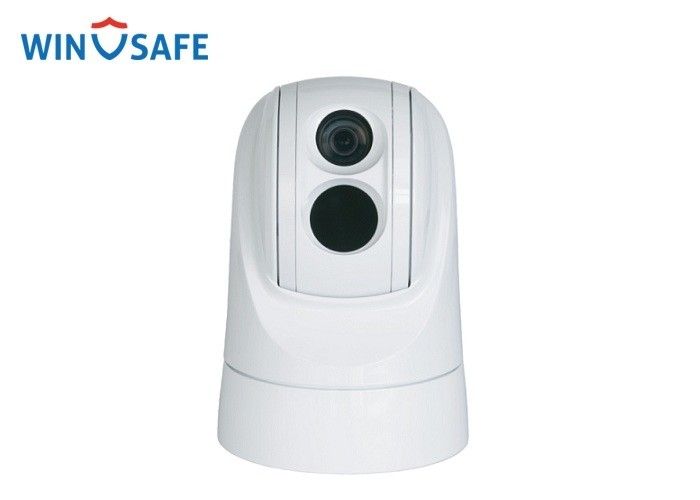

White Extreme Low Light IP Marine Thermal Imaging Weathproof PTZ camera IP67
PATC-F series dual payload thermal PTZ camera is a maritime standard ruggedized thermal vision system, housed with aluminum, the camera is anti-corrosive and IP67 rated, enabling it to work properly even in tough sea environment.
The camera incorporates 640x480/384x288 uncooled thermal core and 20x daylight camera, added its radar tracking, digital stabilization, 25hz/30hz continuous thermal imaging capability,easy control with maritime keyboard controller, making the camera a perfect system to assist mariners to safely navigate.
Features
※ Uncooled Amorphns Silicon FPA, resolution: 384x288/640x480
※ 1/2.8" CMOS color visual camera, 2.14MP, 20X optical zoom
※ Dual HD-SDI outputs for color visual camera and thermal imaging camera
※ Dual H.264 output for color visual camera and thermal imaging camera
※ Optical digital Gyro for image stabilization
※ Wide Dynamic Range(WDR)
※ Day/Night(ICR)
※ Soft PTZ address, self-adaption of protocol and baud rate
※ 10.8 - 28V wide range voltage input
※ Waterproof index: IP67
※ Auto power-off with low power supply
Technical Specification
| Model No. | PATC-FZ319S2008(G) | PATC-FZ340S2008(G) | PATC-FZ619S2008(G) | PATC-FZ640S2008(G) |
| Thermal Imaging Camera | ||||
| Sensor Type | Uncooled Amorphns Silicon FPA | |||
| Working Band | 8μm~14μm | |||
| Resolution | 384 x 288 | 640 x 480 | ||
| Sensor Size | 17μm | |||
| NETK(300K) | ≤60mk | |||
| FOV | 19mm:19.5° x 14.7° | 40mm:9.3° x 7° | 19mm:32.0° x 24.2° | 40mm:15.5° x 11.6° |
| Detecting Range | Vehicle:2570m Man:550m | Vehicle:5400m Man:1170m | Vehicle:2570m Man:550m | Vehicle:5400m Man:1170m |
| Recognition Range | Vehicle:640m Man:130m | Vehicle:1350m Man:290m | Vehicle:640m Man:130m | Vehicle:1350m Man:290m |
| Image Enhancement | Support | |||
| Video Display | Black Hot / White Hot | |||
| Digital Zoom | 1X,2X,4X | |||
| Daylight Imaging Camera | ||||
| Video Sensor | 1/2.8" CMOS, 2.13MP | |||
| Signal System(NET) | 1080P/30,1080P/25,720P/60,720P/50,720P/30,720P/25 | |||
| Signal System(SDI) | 1080P30,1080I60,720P60,720P30,1080P25,1080I50,720P50,720P25 | |||
| Zoom | Optical: 20X; Digital:12X | |||
| Lens | f = 4.7mm - 94mm, F1.6.-F3.5 | |||
| View Angle | 59.5°(wide) - 3.3°(tele) | |||
| Min.Illumination | Color: 0.0013Lux; Mono:0.0008Lux | |||
| S/N Ratio | Not less than 50dB | |||
| WDR | On/Off | |||
| BLC | On/Off | |||
| DNR | 1 - 5 Step/Off | |||
| Day/Night | Auto/Manual | |||
| Pan Range | 360° Continuous | |||
| Pan Speed | Control speed: 0.04° - 100°/s; Preset speed: 100°/s | |||
| Tilt Range | -15° - 90°(Auto Flip) | |||
| Tilt Speed | Control:0.04° - 90°/s, adjustable; Preset Speed: 90°/s | |||
| Preset | 256 | |||
| Preset Predicion | ±0.2° | |||
| Digital Gyro | 1 Axis(Optional) | |||
| Network | ||||
| Image Resolution | 1920*1080 @ 30fps | |||
| Image Compression | H.264 | |||
| Audio Compression | AAC | |||
| Protocols | HTTP, RSTP,TCP,UDP,ONVIF | |||
| Simultaneous Live View | Up to 10 | |||
| Dual Stream | Yes | |||
| Ethernet Interface | 10 / 100M | |||
| Audio Interface | 1 LINE IN | |||
| General | ||||
| Control Interface | RS-485 | |||
| Adress | 0 - 255 | |||
| Comm Protocol | PELCO-P/PELCO-D(Self-Adaptive) | |||
| Baud Rate | 2400bps, 4800bps,9600bps,19200bps(Self Adaptive) | |||
| Voltage | DC 10.8 -28V | |||
| Power Consumption | 35W/50W(Heater On) | |||
| Working Temperature | -35°C - +55°C | |||
| IP Code | IP67 | |||
| Dimensions | Φ190(mm) x 275(mm) | |||
| Weight | 6.3±0.1Kg | |||
Application
The Rugged camera systems provide instant setup, remote monitoring and high resolution features for special applications like army, tactical team, law enforcement, firefighting, marine, vehicles etc.
