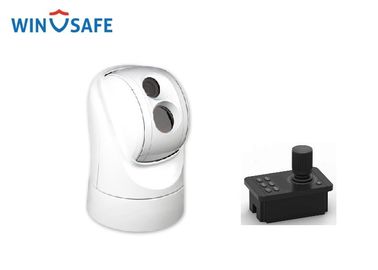

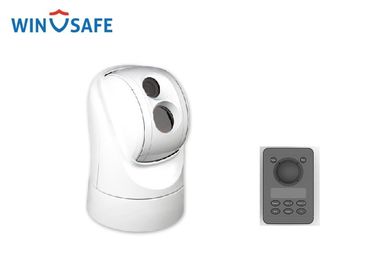

Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat /

Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat /
Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat / Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat /

Large Image :  Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat /

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: PATC-FZ619S2008(G)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Detailed Product Description
Weight: 6.3kg Control Interface: RS485
IP Code: IP67 Dimension: Φ190(mm) X 275(mm)
Digital Gytro: 1 Axis Pan Range: 360° Continuous
Tilt Range: -15° - 90°(Auto Flip) Preset: 256
High Light:

marine surveillance camera

,

boat security camera

Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat




Features

※ Uncooled Amorphns Silicon FPA, resolution: 384x288/640x480
※ 1/2.8" CMOS color visual camera, 2.14MP, 20X optical zoom
※ Dual HD-SDI outputs for color visual camera and thermal imaging camera
※ Dual H.264 output for color visual camera and thermal imaging camera
※ Optical digital Gyro for image stabilization
※ Wide Dynamic Range(WDR)
※ Day/Night(ICR)
※ Soft PTZ address, self-adaption of protocol and baud rate
※ 10.8 - 28V wide range voltage input
※ Waterproof index: IP67
※ Auto power-off with low power supply



Application

The Rugged camera systems provide instant setup, remote monitoring and high resolution features for special applications like army, tactical team, law enforcement, firefighting, marine, vehicles etc.

Technical Specification



Model No. PATC-FZ319S2008(G) PATC-FZ340S2008(G) PATC-FZ619S2008(G) PATC-FZ640S2008(G)
Thermal Imaging Camera
Sensor Type Uncooled Amorphns Silicon FPA
Working Band 8μm~14μm
Resolution 384 x 288 640 x 480
Sensor Size 17μm
NETK(300K) ≤60mk
FOV 19mm: 19.5° x 14.7° 40mm: 9.3° x 7° 19mm: 32.0° x 24.2° 40mm: 15.5° x 11.6°
Detecting Range Vehicle: 2570m Man: 550m Vehicle: 5400m Man: 1170m Vehicle: 2570m Man: 550m Vehicle: 5400m Man: 1170m
Recognition Range Vehicle: 640m Man: 130m Vehicle: 1350m Man: 290m Vehicle: 640m Man: 130m Vehicle: 1350m Man: 290m
Image Enhancement Support
Video Display Black Hot / White Hot
Digital Zoom 1X,2X,4X
Daylight Imaging Camera
Video Sensor 1/2.8" CMOS, 2.13MP
Signal System(NET) 1080P/30,1080P/25,720P/60,720P/50,720P/30,720P/25
Signal System(SDI) 1080P30,1080I60,720P60,720P30,1080P25,1080I50,720P50,720P25
Zoom Optical: 20X; Digital:12X
Lens f = 4.7mm - 94mm, F1.6.-F3.5
View Angle 59.5°(wide) - 3.3°(tele)
Min.Illumination Color: 0.0013Lux; Mono: 0.0008Lux
WB Auto
Focus Auto/Manual
S/N Ratio Not less than 50dB
WDR Yes
BLC On/Off
Image Stabilization On/Off
DNR 1 - 5 Step/Off
Day/Night Auto/Manual
PTZ
Pan Range 360° Continuous
Pan Speed Control speed: 0.04° - 100°/s; Preset speed: 100°/s
Tilt Range -15° - 90°(Auto Flip)
Tilt Speed Control: 0.04° - 90°/s, adjustable; Preset Speed: 90°/s
Preset 256
Preset Predicion ±0.2°
Network
Image Resolution 1920*1080 @ 30fps
Image Compression H.264
Audio Compression AAC
Protocols HTTP, RSTP,TCP,UDP,ONVIF
Simultaneous Live View Up to 10
Dual Stream Yes
Ethernet Interface 10 / 100M
Audio Interface 1 LINE IN
General
Control Interface RS-485
Adress 0 - 255
Comm Protocol PELCO-P/PELCO-D(Self-Adaptive)
Baud Rate 2400bps, 4800bps,9600bps,19200bps(Self Adaptive)
Voltage DC 10.8 -28V
Power Consumption 35W/50W(Heater On)
Working Temperature -35°C - +55°C
IP Code IP67
Dimensions Φ190(mm) x 275(mm)
Weight 6kg W/O Damper; 7kg with Damper(Optional)



Dual Lens Rugged Marine PTZ Camera PATC IP 67 Network Version with Digital Gyro for ship / boat / 0
