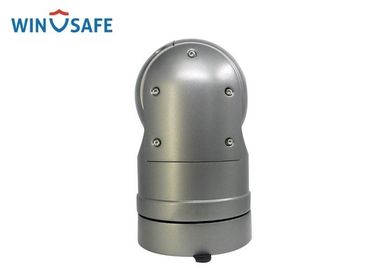

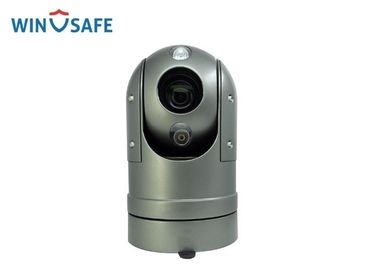

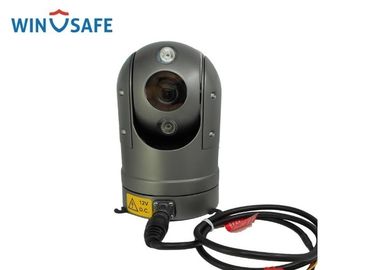

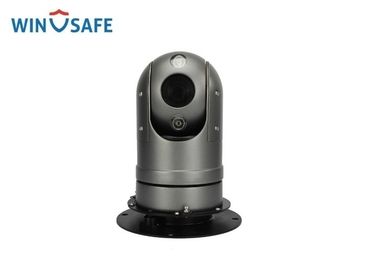

High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles

China High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles supplier
High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles supplier High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles supplier High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles supplier High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles supplier

Large Image :  High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles

Product Details:

Place of Origin: China
Brand Name: Winsafe
Certification: CE/ FCC
Model Number: CAHC-C3000

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Sensor: 1/2.8-type CMOS Min Illmination: Color: 0.5Lux@1/2.8-type CMOS
IR Range: 50 - 80 Meters HD-SDI Output: Yes
Ingress Protection: IP66 (outdoor) Working Temperature: -10°C - 65°C
Working Humdity: Below 90% Optical Zoom: 30X

High Quality 1080P HD SDI 30X Car Roof Mounted Moblie PTZ Camera For Police And Military Vehicles

Feature


High Speed P/T/Z System, 30X optical zoom
360° continuously rotation, upward angle up to 135°
80M IR Distance
Waterproof IP66
Super shockproof, especially suitable for vehicle surveillance
DC10.5V - DC18V power supply
With powerful magnet for portable outdoor vehicle monitoring
HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable


Application


Widely applied on police/military vehicle, marine surveillance, law enforcement vehicle, emergency vehicle, fire control vehicle, ambulance vehicle, etc…

Specification


Model No. CAHC-C3000
Camera
Sensor Type 1/2.8-type CMOS
Signal System 1080p/29.97, HD:1080p60, 1080p/59.94,1080p/50,1080i/60,1080p/30,720p/59.94
Min. Illumination:

Color::0.5Lux@(F1.6, AGC ON);
Black:0.01Lux@(F1.6, AGC ON) 0 Lux with IR

Shutter Speed 50Hz: 1/1 - 1/30,000s; 60Hz: 1/1 - 1/30,000s
Day & Night Model ICR Auto color to black
Lens
Zoom f = 4.3mm(wide) - 129mm(tele),30X optical zoom
Zoom speed 3s
Horizontal angle 63.7°(wide end) - 2.3°(tele end)
Close - up distance 10mm - 1200mm
IRIS F1.6 to F4.7
PTZ
Horizontal Range continuous rotation
Horizontal Speed Control speed: 0.1° - 160°/s, speed adjustable, preset speed: 240°/s
Vertical Range -30° - 90° Auto rotation
Vertical Speed Control speed: 0.1° - 120°/s, speed adjustable, preset speed: 200°/s
Aviator Ratio Support
Preset 256
Cruise Scan Preset crusie scan: support: 360° auto cruise scan
Azimuth information display ON / OFF
Breakout memory support
IR
IR Range 50 - 80 meters
IR Control Light Brightless and angle adjustable
System
Video output and mount HD-SDI output
Wipers Support
Heating function Support
RS485 Support Pelco-P, Pelco-D, Bit-rate optional
Others
General Menu: Chinese/English Brush function support
Power supply DC11V - 18V
Power consumption Below 18W(IR Light 15W Max, Heating 5W Max)
Output cable length 1.5 meters
Temperature and humdity -10°C - 65°C(outdoor), humidity below 90%
Ingress protection IP66(Outdoor), TVS 6000V Lighting / surge / anti-surge
Installation Roof rack



Accessory

High Quality 1080P HD SDI 30X Car Roof Mounted Mobile PTZ Camera For Police And Military Vehicles




Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea




FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days




Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
