High Speed Full HD PTZ Camera , PTZ Dome Camera Cloud Monitoring For Railway

High Speed Full HD PTZ Camera , PTZ Dome Camera Cloud Monitoring For Railway
High Speed Full HD PTZ Camera , PTZ Dome Camera Cloud Monitoring For Railway High Speed Full HD PTZ Camera , PTZ Dome Camera Cloud Monitoring For Railway High Speed Full HD PTZ Camera , PTZ Dome Camera Cloud Monitoring For Railway

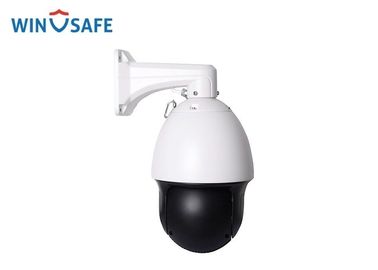

Large Image :  High Speed Full HD PTZ Camera , PTZ Dome Camera Cloud Monitoring For Railway

Product Details:

Place of Origin: China
Brand Name: Winsafe
Certification: CE, FCC, RoHS
Model Number: WS-BT617-N

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Detailed Product Description
Lens: F=4.9mm-94mm Optical Zoom: 20X
Digital Zoom: 20X Min. Illumination: B/W: 0.01Lux
D/N: IR-CUT AGC: Auto/manual
Pan Range: 0°~360° Tilt Range: 0°~93°
High Light:

full hd surveillance cameras

,

full hd security camera

Outdoor High Speed PTZ Dome Camera HD IP 2.0/5.0MP P2P Cloud Monitoring For Railway





Feature



Model No. WS-BT617-N
DSP HI3516C HI3516D
Sensor 1/3" Sony IMX323 1/3" AR0521
Pixel 200W 500W
Resolution Ratio 1920*1080@25fps / 1920*1080@30fps 2592*1944@15fps / 2592*1944@22fps
Lens f=4.9mm-94mm
Optical Zoom 20X
Digital Zoom 20X
Min. illumination Color: 0.1Lux B/W: 0.01Lux / IR ON:0 Lux
D/N IR-CUT
AGC Auto/manual
WB Auto/manual/indoor/outdoor
S/N Ratio ≥50dB(AGC OFF)
Rotation Range Pan: 0°~360° Tilt: 0°~93°
Horizontal Rotation Speed 0.02°/s-45°/s
Tilt Rotation Speed 0.02°/s-30°/s
Auto Flip Horizontal 180°, Vertical 93°
A-B Scan User programmable
A-B Scan Speed 1-9 levels setting available
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Network Security HTTPS,802.1X,IP ADDRESS FILTERING
Quick Command PELCO instruction set
Mobile View(optional) Support android/ios smart phone
APP Hisee
Video Compression H.264/H.265/M-JPEG
Audio compression G711,PCM
Audio Frequency Optional
Dwell Preset 1-60s interval available
Preset Points 220
Go to Preset Speed 1-64 levels available
PWR On Action Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time 1-60mins available
Guard Tours 3 groups
Guard Points Max.16 points, dwell time user selectable
Operation menu English etc
Pan and Tilt position display Support
Auto Control IR LED PWM
LEDs Array 42Mil, 8 pieces IR LED
Lightning Protection Transient voltage 6000V
IR distance Up to 120 meters
Support ambient light detection IR illumination on 1-9 grades selectable;
Operating temperature Outdoor: -40°~ +60°
Operating Humidity ≤95% Non Condensing
Power DC12V 3A
Consumption ≤15W
Ingress Protection IP66 (Outdoor)
Packing Case Size 31cm x 31cm x 44cm/PCS(L*W*H) / 64cm x 31cm x 45cm/2PCS (L*W*H)
Weight N.W 5KG/G.W 7KG
