Automobile Low Light PTZ Camera Black Color 850mm / 940nm IR Wave Length

China Automobile Low Light PTZ Camera Black Color 850mm / 940nm IR Wave Length supplier

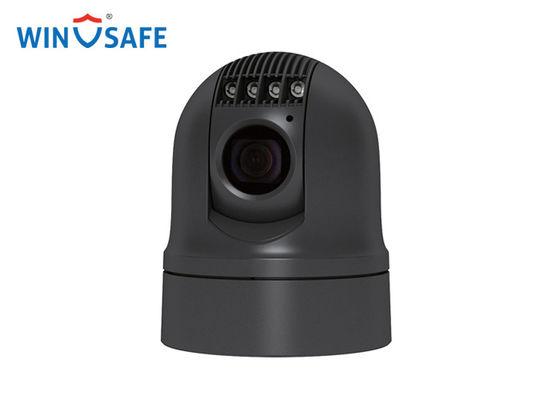

Large Image :  Automobile Low Light PTZ Camera Black Color 850mm / 940nm IR Wave Length

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: CAHC-A2001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5 - 8 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000PCS/Month
Contact Now
Detailed Product Description
CAHC-A2001: 20X Optical Zoom White Balance: Auto
Preset Number: 256 Video Interface: HD-SDI
Voltage: DC10.8 - 28V IP Code: Magnet / Fixed / Fixed With Damper
IR Wave Length: 850mm / 940nm IR Range: 60m (850nm) / 30m(940nm)

Automobile Low Light PTZ Camera Black Color 850mm / 940nm IR Wave Length





Features





※ 2.14MP HD sensor, supporting 1080p,1080i,720p output, full digital video technology
※ HD-SDI for transfer of HD video
※ Efficient 60M IR lighting, excellent night vision performance
※ Portable with compact design & high reliability
※ Optional damping system
※ WDR supported
※ Built-in defogger
※ Self-adaption of Protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off which low power supply





Technical Specification



Model No. CAHC-A2001-IR
Camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixel 2.14MP
Video Output HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25
Min.Illumination Color: 0.5Lux; B/W: 0.1Lux
White Balance Auto
Focus Auto / Manual / PTZ Trigger
Exposure Auto / Shutter priority
S/N Ratio 50 Db
BLC On / Off
WDR On / Off
Digital Noise Reduction 1 - 5 Steps / OFF
Day/Night Auto / Manual
Lens
Optical Zoom 20X
Digital Zoom 12X
Focal f = 4.7 - 94mm
IRIS F 1.6 - F3.5
Angle Field of View 59.4° - 2.9°
PTZ
Pan Range 360° Continuous
Pan Speed Control speed: 0.3° - 80°/s, adjustable; Preset speed:80°/s
Tilt Range - 15 ° - 90°( Auto Flip)
Tilt Speed Control speed: 0.3° - 35°/s, adjustable; Preset speed: 35°/s
Preset Number 256
Preset Precision ±0.2°
IR Light
IR Wave Length 850nm / 940nm
Range 60m(850nm) / 30m(940nm)
Switch Auto / Manual
General
OSD Lanuage English
Comm. Interface RS-485
Video Interface HD: HD-SDI
Protocol 2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
Address 0-255
Voltage DC10.8-28V
Power 8W(Standby); 25W(Aux lights ON, defogger ON, and P/T runing continuously)
Working Temperature -30°C - +65°C
IP Code Magnet / Fixed / Fixed with Damper
Dimensions Φ130(mm) x 163(mm) w/o damper; Φ140z(mm) x 199(mm) with damper
Weight Fixed Mount: 1.7kg; Magnet Mount: 1.6kg; Fixed with damper: 2.1kg





Automobile Low Light PTZ Camera Black Color 850mm / 940nm IR Wave Length









Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
