Home ProductsWireless IP Camera System

Network Video Recorder NVR Wireless Security Camera System 20M IR Distance

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

Network Video Recorder NVR Wireless Security Camera System 20M IR Distance

Network Video Recorder NVR Wireless Security Camera System 20M IR Distance
Network Video Recorder NVR Wireless Security Camera System 20M IR Distance Network Video Recorder NVR Wireless Security Camera System 20M IR Distance Network Video Recorder NVR Wireless Security Camera System 20M IR Distance

Large Image :  Network Video Recorder NVR Wireless Security Camera System 20M IR Distance

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-NVR418-10

Payment & Shipping Terms:

Minimum Order Quantity: 20
Packaging Details: Neutral Packing
Delivery Time: 8-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000 Kits/Month
Detailed Product Description
IR Distance: 20M Mobile: Android / IOS
Model No.: WS-NVR418-10 NVR: 4 Channel
Monitor: 10.1 Inch Size: 280*230*57mm
Weight: 0.5kg Program: Hi3518E + OV9712
High Light:

Wifi Security Camera System

,

Wireless IP Camera Kit



Network Video Recorder NVR Wireless Security Camera System 20M IR Distance





Packing Infomration



※ 4CH NVR with 2pcs Antenna
※ 720P 1.0MP wifi IP Camera:4PCS
※ Power: 5PCS
※ CD: 1PCS
※ Mouse: 1PCS
※ Screw package: 5PCS
※ Simple instructions: 1PCS





Features



※ Power to the image, do not do any settings, truly fool-operation
※ 4CH WIFI NVR with 4 PCS WIFI IP camera, you can allow customers to follow their own according to their needs expand
※Support phone operator APP
※Support the post alarm, motion detection, etc.

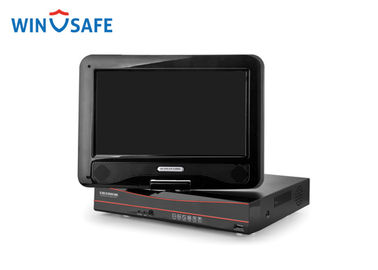

Specification



Model No. WS-NVK418M-10
Video & audio input
Network video input 4CH NVR,With 10.1”LED,Up Down Left Right,Rotate 180 Degrees
Video & audio output
HDMI output 800x600,1024x768,1280x1024,1440x900,720P,1080P
VGA output 800x600,1024x768
Mobile phone Support Android /Apple System
Audio output NO
Video & audio code and decode parameters
Record resolution D1/HD1/CIF/720P/960P/1080P
Playback resolution 720P 100/120FPS 1080P 50/64FPS
Motion detection Motion Detection
Synchronously playback channels 1/4CH
Record management
Record & Snapshot mode manual recording, regular recording, motion recording, alarm recording, events recording
Playback mode regular playback,alarm playback,motion detection playback,events playback
Backup mode regular backup, events backup, manual backup
Hard driver
Mode 1*SATA
HDD capacity each port support max 4TB HDD
External port
Voice intercom NO
Internet port 1PCS RJ45 10M / 100M adaptive Ethernet port
USB port 1*USB2.0
WIFI port Built-in wireless router,With 2pcs Antenna
WIFI Distance 100M(Open area),Wall:20-30M
Network Management
Network protocol Built-in wireless router,With 2pcs Antenna,The image is automatically
Other
Power supply DC12V
Power consumtion(without HDD ≤16W
Work temperature (-10℃--+55℃)
Work humidity 10%--90%
Case 0.8U
Size(W*L*H(cm)) 280*230*57mm
Net weight(without HDD) 1.6kg
Gross weight(without HDD) 2.39kg
Color box size(L*W*H(cm)) 330*320*98mm
Packing(pcs/carton) 5
Carton size (L*W*H(cm)) 50*34*35cm
Gross weight(kg) 12.46kg

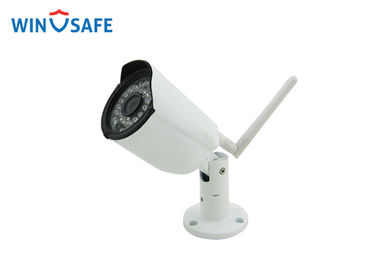

WIFI IP CAMERA Parameter
Model No. WS-IPC-418M-10
Program HI3518E+OV9712
System structure Embedded RTOS design,Dual-Core 32-bit DSP,Pure hardware compression, watchdog;
Sensor 1/4" OV9712 CMOS sensor
Led 36PCS IR LED+15PCS IR LED
Lens 4.0MM 2.0MP HD Lens
IR Distance 20-30M
Minimum illumination Colo 0.001Lux@F1.2;
Video Processing H.264 coding,MJPEG coding
AVI format;Support Stream 0.1M~16Mpbs Adjustable;
Image Frame Rate PAL:1~25 Frame/second,NTSC:1~30 Frame/second;Adjustable
Video Streams Main stream:1280*720
Sub-stream:704*576,640*480,352*288
Audio Processing N/A
Network Interface 1PCS RJ45 Ethernet port, 10m / 100M Adaptive;Support WIFI,Automatic code, automatic image
WIFI Port Support WIFI, With 1pcs Antenna
WIFI Distance 100M(Open area),Wall:20-30M
Reset Interface N/A
TF card interface N/A
Auto Iris Interface N/A
Signal Interface Support photoresistor input signal and the IR-CUT, infrared light linkage;
POE N/A
Phone monitoring N/A
Lightning Protection Power, network, POE comprehensive lightning,In line with national standards GB / T17626.5,
International standard IEC61000-4-5.
Working environment (-10℃~+60℃)
Power supply DC12V power input(12V/1A)
Weight 0.5KG
