Network 1.3 Megapixel Wireless Outdoor Security Camera System With Monitor

China Network 1.3 Megapixel Wireless Outdoor Security Camera System With Monitor supplier
Network 1.3 Megapixel Wireless Outdoor Security Camera System With Monitor supplier Network 1.3 Megapixel Wireless Outdoor Security Camera System With Monitor supplier

Large Image :  Network 1.3 Megapixel Wireless Outdoor Security Camera System With Monitor

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-NVR415-13

Payment & Shipping Terms:

Minimum Order Quantity: 20
Packaging Details: Neutral Packing
Delivery Time: 8-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000 Kits/Month
Contact Now
Detailed Product Description
Camera Resolution: 1.3MP NVR: 4 Channel
WiFi Wireless: Yes Motion Detection: Support
HDD Capacity: 1*SATA NVR USB Port: 1*USB2.0
WiFi Distance: 20M(Wall) Camera Weight: 0.5kg


Network 1.3 Megapixel Wireless Outdoor Security Camera System With Monitor



Packing Infomration



※ 4CH NVR with 2pcs Antenna
※ 960P 1.3MP wifi IP Camera:4PCS
※ Power: 5PCS
※ CD: 1PCS
※ Mouse: 1PCS
※ Screw package: 5PCS
※ Simple instructions: 1PCS






※ Power to the image, do not do any settings, truly fool-operation
※ 4CH WIFI NVR with 4 PCS WIFI IP camera, you can allow customers to follow their own according to their needs expand
※Support phone operator APP
※Support the post alarm, motion detection, etc.

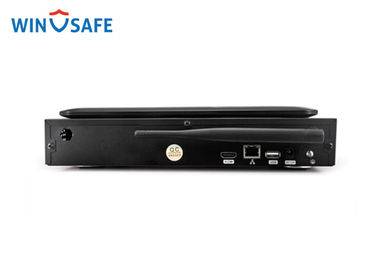

Model No. WS-NVK415M-13
Video & audio input
Network video input 4CH NVR,With 10.1”LED,Up Down Left Right,Rotate 180 Degrees
Video & audio output
HDMI output 800x600,1024x768,1280x1024,1440x900,720P,1080P
VGA output 800x600,1024x768
Mobile phone Support Android /Apple System
Audio output NO
Video & audio code and decode parameters
Record resolution D1/HD1/CIF/720P/960P/1080P
Playback resolution 720P 100/120FPS 1080P 50/64FPS
Motion detection Motion Detection
Synchronously playback channels 1/4CH
Record management
Record & Snapshot mode manual recording, regular recording, motion recording, alarm recording, events recording
Playback mode regular playback,alarm playback,motion detection playback,events playback
Backup mode regular backup, events backup, manual backup
Hard driver
Mode 1*SATA
HDD capacity each port support max 4TB HDD
External port
Voice intercom NO
Internet port 1PCS RJ45 10M / 100M adaptive Ethernet port
USB port 1*USB2.0
WIFI port Built-in wireless router,With 2pcs Antenna
WIFI Distance 100M(Open area),Wall:20-30M
Network Management
Network protocol Built-in wireless router,With 2pcs Antenna,The image is automatically
Power supply DC12V
Power consumtion(without HDD ≤16W
Work temperature (-10℃--+55℃)
Work humidity 10%--90%
Case 0.8U
Size(W*L*H(cm)) 280*230*57mm
Net weight(without HDD) 1.6kg
Gross weight(without HDD) 2.39kg
Color box size(L*W*H(cm)) 330*320*98mm
Packing(pcs/carton) 5
Carton size (L*W*H(cm)) 50*34*35cm
Gross weight(kg) 12.46kg
Model No. WS-IPC-415M-13
Program HI3518E+OV0130
System structure Embedded RTOS design,Dual-Core 32-bit DSP,Pure hardware compression, watchdog;
Sensor 1/4" OV0130 CMOS sensor
Lens 4.0MM 2.0MP HD Lens
IR Distance 20-30M
Minimum illumination Colo 0.001Lux@F1.2;
Video Processing H.264 coding,MJPEG coding
AVI format;Support Stream 0.1M~16Mpbs Adjustable;
Image Frame Rate PAL:1~25 Frame/second,NTSC:1~30 Frame/second;Adjustable
Video Streams Main stream: 1280*960
Sub-stream: 1280*720 ,704*576,640*480
Audio Processing N/A
Network Interface 1PCS RJ45 Ethernet port, 10m / 100M Adaptive;Support WIFI,Automatic code, automatic image
WIFI Port Support WIFI, With 1pcs Antenna
WIFI Distance 100M(Open area),Wall:20-30M
Reset Interface N/A
TF card interface N/A
Auto Iris Interface N/A
Signal Interface Support photoresistor input signal and the IR-CUT, infrared light linkage;
Phone monitoring N/A
Lightning Protection Power, network, POE comprehensive lightning,In line with national standards GB / T17626.5,
International standard IEC61000-4-5.
Working environment (-10℃~+60℃)
Power supply DC12V power input(12V/1A)
Weight 0.5KG
