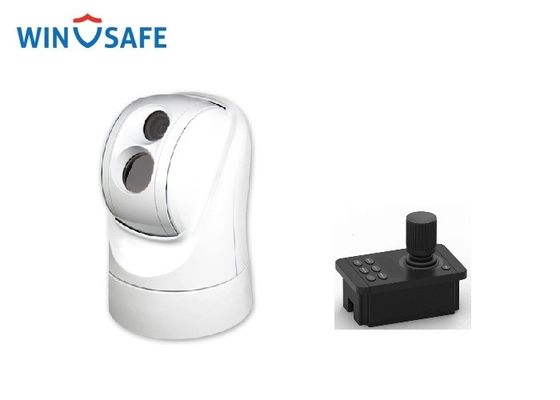

SDI 19mm Uncooled Marine PTZ Camera , Marine Thermal Camera With Digital Gyro Function

SDI 19mm Uncooled Marine PTZ Camera , Marine Thermal Camera With Digital Gyro Function
SDI 19mm Uncooled Marine PTZ Camera , Marine Thermal Camera With Digital Gyro Function SDI 19mm Uncooled Marine PTZ Camera , Marine Thermal Camera With Digital Gyro Function

Large Image :  SDI 19mm Uncooled Marine PTZ Camera , Marine Thermal Camera With Digital Gyro Function

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: PATC-FZ619S2008(G)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Detailed Product Description
Resolution: 640 X 480 IP Index: IP67
Sensor Type: Uncooled Amorphons Silicon FPA Sensor Size: 17μm
FOV: 32° X 24.2° Detecting Range: Vehicle :2570m Man: 550m
Recognition Range: Vehicle: 640m Man: 130m Video Display: Black Hot / White Hot
High Light:

marine security cameras

,

marine surveillance camera

SDI 19mm Uncooled Silicon FPA PTZ Camera , Marine Thermal Camera With Digital Gyro Function

Features

※ Uncooled Amorphns Silicon FPA, resolution: 384x288/640x480
※ 1/2.8" CMOS color visual camera, 2.14MP, 20X optical zoom
※ Dual HD-SDI outputs for color visual camera and thermal imaging camera
※ Dual H.264 output for color visual camera and thermal imaging camera
※ Optical digital Gyro for image stabilization
※ Wide Dynamic Range(WDR)
※ Day/Night(ICR)
※ Soft PTZ address, self-adaption of protocol and baud rate
※ 10.8 - 28V wide range voltage input
※ Waterproof index: IP67
※ Auto power-off with low power supply


Technical Specification



Model No. PATC-FZ319S2008(G) PATC-FZ340S2008(G) PATC-FZ619S2008(G) PATC-FZ640S2008(G)
Thermal Imaging Camera
Sensor Type Uncooled Amorphns Silicon FPA
Working Band 8μm~14μm
Resolution 384 x 288 640 x 480
Sensor Size 17μm
NETK(300K) ≤60mk
FOV 19mm:19.5° x 14.7° 40mm:9.3° x 7° 19mm:32.0° x 24.2° 40mm:15.5° x 11.6°
Detecting Range Vehicle:2570m Man:550m Vehicle:5400m Man:1170m Vehicle:2570m Man:550m Vehicle:5400m Man:1170m
Recognition Range Vehicle:640m Man:130m Vehicle:1350m Man:290m Vehicle:640m Man:130m Vehicle:1350m Man:290m
Image Enhancement Support
Video Display Black Hot / White Hot
Digital Zoom 1X,2X,4X
Daylight Imaging Camera
Video Sensor 1/2.8" CMOS, 2.13MP
Signal System(NET) 1080P/30,1080P/25,720P/60,720P/50,720P/30,720P/25
Signal System(SDI) 1080P30,1080I60,720P60,720P30,1080P25,1080I50,720P50,720P25
Zoom Optical: 20X; Digital: 12X
Lens f = 4.7mm - 94mm, F1.6.-F3.5
View Angle 59.5°(wide) - 3.3°(tele)
Min.Illumination Color: 0.0013Lux; Mono: 0.0008Lux
WB Auto
Focus Auto/Manual
S/N Ratio Not less than 50dB
WDR Yes
BLC On/Off
Image Stabilization On/Off
DNR 1 - 5 Step/Off
Day/Night Auto/Manual
PTZ
Pan Range 360° Continuous
Pan Speed Control speed: 0.04° - 100°/s; Preset speed: 100°/s
Tilt Range -15° - 90°(Auto Flip)
Tilt Speed Control: 0.04° - 90°/s, adjustable; Preset Speed:  90°/s
Preset 256
Preset Predicion ±0.2°
Network
Image Resolution 1920*1080 @ 30fps
Image Compression H.264
Audio Compression AAC
Protocols HTTP, RSTP,TCP,UDP,ONVIF
Simultaneous Live View Up to 10
Dual Stream Yes
Ethernet Interface 10 / 100M
Audio Interface 1 LINE IN
General
Control Interface RS-485
Adress 0 - 255
Comm Protocol PELCO-P/PELCO-D(Self-Adaptive)
Baud Rate 2400bps, 4800bps,9600bps,19200bps(Self Adaptive)
Voltage DC 10.8 -28V
Power Consumption 35W/50W(Heater On)
Working Temperature -35°C - +55°C
IP Code IP67
Dimensions Φ190(mm) x 275(mm)
Weight 6kg W/O Damper; 7kg with Damper(Optional)

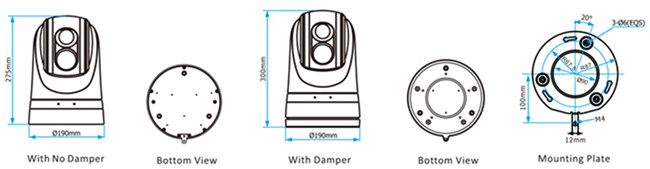

Dimensional Drawing
