Product Details:
Payment & Shipping Terms:
|
| Optical Zoom: | 28X | Digital Zoom: | 12X |
|---|---|---|---|
| Video System: | PAL/NTSC | Resolution: | 550TVL |
| Color: | Black & White | Voltage: | DC9V-36V |
| IP Code: | IP66 | Dimensions: | Φ136(mm) X 185(mm) |
| High Light: | marine surveillance camera,boat security camera |
||

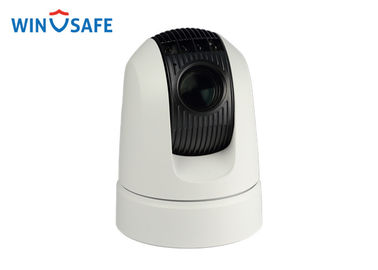

IP66 Wide Voltage Input Police PTZ Camera , Vehicle Mounted Thermal Camera
Features
※ Aluminum housing
※ IP66 weatherproof
※ Digital image stabilization
※ Efficient 60M IR distance
※ Wide range of voltage input
※ Sony 28x/36x zoom module, D/N
※ Self-adaption of protocol & baud rate
※ Image flip for stand/suspended installation
※ Special design of drive system, PTZ positioning prcision up to +/-0.05 degree
Technical Specification
| Model No. | AC3-S3603-IR | AC3-S2801-IR |
| Camera | ||
| Image Sensor | 1/4" SONY EX-View HAD CCD | |
| Effective Pixel | PAL: 752(H) x 582(V); NTSC:768(H) x 494(V) | |
| Resolution | 550TVL | |
| Video System | PAL/NTSC | |
| Optical Zoom | 36X | 28X |
| Digital Zoom | 12X | |
| Min Illumination | Color Mode:1/60 mode:1.4Lux; 1/4s mode:0.1Lux BW Mode: 0.1Lux(Lights On); 0.01Lux(Lights off) |
Color Mode:1/60 mode:0.25Lux; 1/4s mode:0.16Lux BW Mode: 0.1Lux(Lights On); 0.0015Lux(Lights off) |
| White Balance | Auto | |
| Focus | Auto/Manual | |
| Exposure | Auto/Manual | |
| S/N Ratio | Not less than 50DB | |
| BLC | On/Off | |
| WDR | On/Off | No |
| Digital Noise Reduction | 1-5 steps/Off | |
| Day/Night | Auto/Manual | |
| Lens | F1.6 - F4.5, f=3.4 - 122.4mm | F1.35 - F3.7, f=3.5 - 98mm |
| View Angle | 57.8°(wide) to 1.7°(tele) | 55.8°(wide) to 2.1°(tele) |
| PTZ | ||
| Pan Range | 360° Continuous | |
| Pan Speed | 0.1° - 60°/s, adjustable | |
| Tilt Range | -15° - 90°(Auto Flip) | |
| Tilt Speed | 0.2° - 60°/s, adjustable | |
| Preset | 256 | |
| Preset Predicion | ±0.05° | |
| IR Light | ||
| IR Wave Lenth | 850nm | |
| Range | 60m | |
| Switch | Auto/Manual | |
| General | ||
| OSD | English | |
| Comm. Interface | RS485 | |
| Protocol | PELCO-P / PELCO-D(self-adaptive) | |
| Adress | 0 - 255 | |
| Video Output | CVBS | |
| Baud Rate | 2400bps, 4800bps, 9600bps, 19200bps(self-adaptive) | |
| Power Consumption | 0.5W(Standby); 20W(Max) | |
| Working Temperature | -35°C - +65°C | |
| Voltage | DC9V - 36V | |
| IP Code | IP66 | |
| Dimensions | Standard(Without Damper) Φ136(mm) x 185(mm) | |
| Weight | Standard(Without Damper) 2.0(±0.2)kg | |
Dimensional Drwing
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
