Product Details:
Payment & Shipping Terms:
|
| Lens: | F=3.4-122.4mm | Iris: | F1.6-F4.5 |
|---|---|---|---|
| View Angle: | 57.8°(wide) To 1.7°(tele) | IR Distance: | 120M |
| Voltage: | DC10.8V-28V | Weight: | 4.9kg |
| Digital Zoom: | 12X | Optical Zoom: | 28X |
| High Light: | mobile ptz camera,rugged security camera |
||
Full Weather Proof Vehicle Mounted Rugged PTZ Camera with low illumination 550TVL Resolution
Technical Specification
| Model No. | PAC-S3601P(N)-IR | PAC-S2801P(N)-IR |
| Camera | ||
| Image Sensor | 1/4" SONY EX-View HAD CCD | |
| Effective Pixel | PAL: 752(H) x 582(V); NTSC:768(H) x 494(V) | |
| Resolution | 550TVL | |
| Optical Zoom | 36X | 28X |
| Digital Zoom | 12X | |
| Min Illumination | 0.01Lux(Lights Off); 0Lux(Lights On) | 0.0015Lux(Lights Off); 0Lux(Lights On) |
| White Balance | Auto | |
| Focus | Auto/Manual | |
| Exposure | Auto/Manual | |
| S/N Ratio | Not less than 50DB | |
| BLC | On/Off | |
| WDR | On/Off | No |
| Digital Image Stabilization | On/Off | |
| Digital Noise Reduction | 1-5 steps/Off | |
| Day/Night | Yes | |
| Lens | F1.6 - F4.5, f=3.4 - 122.4mm | F1.35 - F3.7, f=3.5 - 98mm |
| View Angle | 57.8°(wide) to 1.7°(tele) | 55.8°(wide) to 2.1°(tele) |
| PTZ | ||
| Pan Range | 360° Continuous | |
| Pan Speed | 0.04° - 90°/s, adjustable | |
| Tilt Range | -15° - 90°(Auto Flip) | |
| Tilt Speed | 0.3° - 60°/s, adjustable | |
| Preset Speed | Pan: 120°/s; Tilt: 90°/s | |
| Preset | 256 | |
| Preset Predicion | ±0.05° | |
| IR Light | ||
| IR Wave Lenth | 850nm/940nm | |
| Lamp Power(with driver) | 30W(850nm) /15W(940nm) | |
| Light Power / Brightness | 10W(850nm) / 5W(940nm) | |
| Range | 120m(850nm) / 60M(940nm) | |
| Switch | Auto/Manual | |
| General | ||
| Comm. Interface | RS485 | |
| Protocol | PELCO-P / PELCO-D(self-adaptive) | |
| Adress | 0 - 255 | |
| Baud Rate | 2400bps, 4800bps, 9600bps, 19200bps(self-adaptive) | |
| Power Consumption | 20W(Defogger and lights off); 40W(Defogger on and lights off); 70W(Defogger and lights on) | |
| Working Temperature | -25°C - +65°C | |
| Voltage | DC10.8V - 28V | |
| IP Code | IP67, TVS, Anti-Surge | |
| Dimensions | Standard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm) | |
| Weight | Standard: 4.9kg; Optional: 5.65kg ( with damper) | |
Features
※ Strong Aluminum PTZ shell, full weather proof, IP67
※ Variable Baud rate, up to 19200/bps, support multiple protocols
※ Low DNR, less than 50 db
※ Support ICR, WDR, BLC, SNR, DNR with auto or manual control
※ f=3.4-122.4mm, 360 degree continuous makes sure every angle can be viewed
※ Power aux IR system, range up to 120 meters

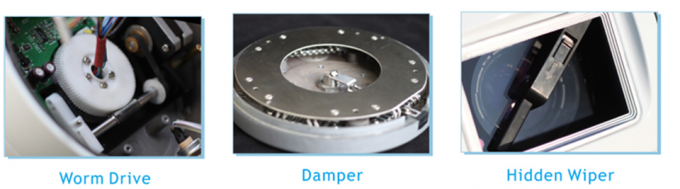

※ Hidden seamless window wiper with adjustable speed
※ Built-in defogger,10.8 - 28V voltage input
※ New design of drive system, PTZ positioning precision up to +/-0.05°
※ Image flip for stand/ceiling mount
※ Auto power-off with low power supply
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days
