5MP 3X Full HD Pan Tilt Zoom Camera Visca Protocol 3G-SDI DVI-I Simultaneously Output

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

5MP 3X Full HD Pan Tilt Zoom Camera Visca Protocol 3G-SDI DVI-I Simultaneously Output

5MP 3X Full HD Pan Tilt Zoom Camera Visca Protocol 3G-SDI DVI-I Simultaneously Output
5MP 3X Full HD Pan Tilt Zoom Camera Visca Protocol 3G-SDI DVI-I Simultaneously Output

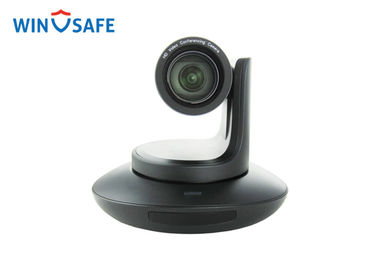

Large Image :  5MP 3X Full HD Pan Tilt Zoom Camera Visca Protocol 3G-SDI DVI-I Simultaneously Output

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: UHV-3X-S-A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Detailed Product Description
Pan Rotation Speed: 0° - 120°/s Tilt Rotation Speed: 0° - 80°/s
Pan Rotation Angle: -170 - +170° Tilt Rotation Angle: - 30° - +90°
Preset: 128 Sensor: 1/3" HD CMOS Sensor
Resolution: 5MP Weight: 1.25kg
High Light:

full hd surveillance cameras

,

hd pan tilt zoom camera


5MP 3X Full HD Pan Tilt Zoom Camera Visca Protocol 3G-SDI DVI-I Simultaneously Output


Advantages


※ Super high video quality: with Ambarella A7 DSP 1/3" 5MP Sensor and high quality 3x lens
※ Fast switching between different video formats: only 4 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Daisy Chain function: with both Visca in and Visca out port
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time



Features


※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 3X optical Zoom +3X Digital Zoom
※ 1920x1080p 30fps high resolution
※ 105° ultra wide FOV
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Exposure Compensation, 2D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls



Technical Specification

Model No.UHV-3X-S
Sensor1/3 inch high quality, 5MP HD CMOS Sensor
Video SystemDVI Port3G-SDI PortCVBS port(optional)
1080p29.97/25;
720p59.94/20/29.97/25
1080p29.97/25;
720p59.94/20/29.97/25
Analog Video
Zoom3x optical zoom + 3x digital zoom
View Angle30.2°(wide) - 105°(tele)
Pan Rotation Angle- 170° - +170°
Tilt Roation Angle- 30° - + 90°
Pan Rotation Speed0° - 120° /s
Tilt Rotation Speed0° - 80° /s
Preset128
Control PortRS232/RS485
Video PortDVI-I, 3G-SDI, CVBS(optional)
SNR47dB
Focal Lengthf=3.2(wide) - 9.6mm(tele)
Minimum Lux0.01Lux
White BalanceAuto/Manual
FocusAuto/Manual
IrisAuto/Manual
Electronic ShutterNO
BLCNO
Input VoltageDC12V
Dimension(W x H x W)220mm x 173mm x 117mm
Net Weight1.25KG

Application


HD PTZ Video Coneference Camera are good used on video conference system, Telemedicine, Education Recordered, Church etc.


Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
