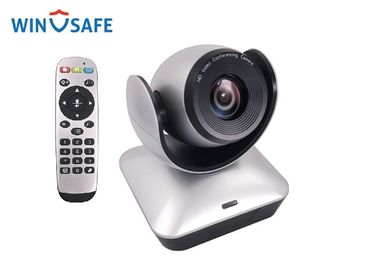

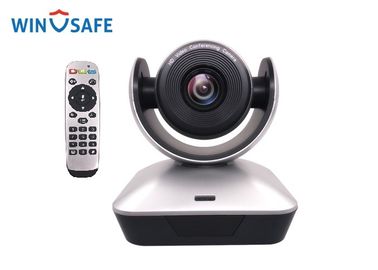

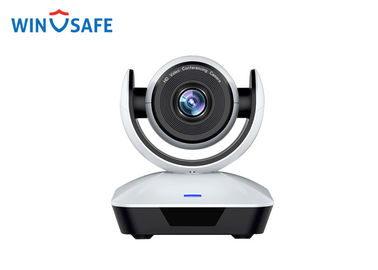

62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X

China 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X supplier
62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X supplier 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X supplier 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X supplier

Large Image :  62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: UHV-10X-U2S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral Packing
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Video Port: USB2.0 Focal Length: F=4.7mm - 47mm
Minimum Lux: 0.1Lux White Balance: Auto/Manual
Sensor: 1/2.8" Inch HD CMOS Resolution: 5MP
Optical Zoom: 10X Digital Zoom: 12X

62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X



Advantages



※ Outstanding Video Quality



UHV-10X-U2S offers brilliantly sharp video with Ambarella DSP 1/ 2.8 inch Sony sensor and 10X lens



※ Auto focus performs excellently



When the camera is potisioned in the working environment, it fastly frame the presenters with smooth pan/tilt/zoom mechanism. Every details can be seen and recorded.



※ Easy USB2.0 connectivity



Firmware directly update without opening the camera housing.



※ Multi language OSD menu



English, Chinese, Russia, Spanish is supported in OSD mesu.



※ 2 years warranty



The camera can be repaired for free in 2 year within the scope of repairing.



Features



※ USB 2.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 30fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls



Specification



Model No. UHV-10X-U2S
Sensor 1/2.8 inch high quality, SONY CMOS Sensor
Video System 1920x1080P30/25, 1280X720P30/25
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.43°(wide) - 62.5°(tele)
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
Black Light Compensation ON/OFF
Anti Tlicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 output, 10 via remote controller
Video USB2.0(MJPG fomat)
Control RS232(Sony visca), USB 2.0(UVC1.5 protocol)
Power DC12V
OSD Menu English/Chinese
Dimension(W x H x W) 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm
Net Weight 0.9KG(2LBS)



Application software



                                 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X





Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
