Product Details:
Payment & Shipping Terms:
|
| CMOS: | Sony 323 CMOS | DSP: | Hi 3516C / HI3516D |
|---|---|---|---|
| IR Distance: | 120M | Presets: | 220 |
| Optical Zoom: | 20X / 36X | Effective Pixel: | 2.0 / 5.0 Megapixel |
| D/N: | IR - CUT | Power: | DC12V 3A |
| High Light: | full hd surveillance cameras,full hd security camera |
||

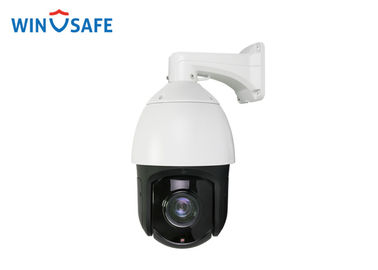

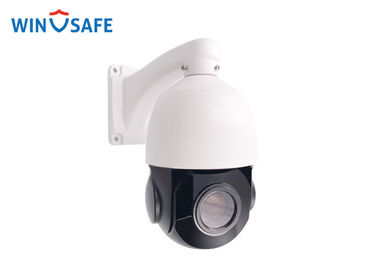

Full HD Cost Efeective P2P 2.0 / 5.0 Megapixel 20X / 36X ONVIF IP Middle Speed Dome Camera
Product Overview
※ 4.5" double layer body construction, medium speed dome with OSD
※ 1/3" CMOS, 2.0/5.0 Megapixels, 20x / 36x optical zoom
※ HD-IP digital interface output, 1080P high definition image
※ PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
※ IR distance 60M
※ Support P2P function
※ OSD menu is available
※ ONVIF2.2 compatible
※ Compatible with DAHUA , HIKVISION , XM and so on
※ Compatible with AXXON , Milstone , NUUO
Technical Specification
| Model No. | WS-BT54F-N | ||
| DSP | HI3516C | HI3516D | HI3516D |
| Sensor | 1/3" Sony IMX323 | 1/3" AR0521 | 1/3" Panasonic34229 |
| Pixel | 200W | 500W | 200W |
| Resolution Ratio | 1920*1080@25fps / 1920*1080@30fps | 2592*1944@15fps / 2592*1944@22fps | 1920*1080@25fps / 1920*1080@30fps |
| Lens | f=4.7mm-94mm | f=4.7mm-94mm | f=4.6mm-165mm |
| Optical Zoom | 20X | 20X | 36X |
| Digital Zoom | 10X | ||
| Min. illumination | Color: 0.1Lux / B/W: 0.01Lux / IR ON:0 Lux | ||
| D/N | IR-CUT | ||
| AGC | Auto/manual | ||
| WB | Auto/manual/indoor/outdoor | ||
| S/N Ratio | ≥50dB | ||
| Rotation Range | Pan: 0°~360° Tilt: 0°~93° | ||
| Horizontal Rotation Speed | 0.02°/s-45°/s | ||
| Tilt Rotation Speed | 0.02°/s-30°/s | ||
| Auto Flip | Horizontal 180°, Vertical 93° | ||
| A-B Scan | User programmable | ||
| A-B Scan Speed | 1-9 levels setting available | ||
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | ||
| Software Control | IE, CMS, Management Platform | ||
| Network Security | HTTPS,802.1X,IP ADDRESS FILTERING | ||
| Quick Command | PELCO instruction set | ||
| Mobile View(optional) | Support android/ios smart phone | ||
| APP | Hisee | ||
| Video Compression | H.264/H.265/M-JPEG | ||
| Audio compression | G711,PCM | ||
| Audio Frequency | Optional | ||
| Dwell Preset | 1-60s interval available | ||
| Preset Points | 220 | ||
| Go to Preset Speed | 1-64 levels available | ||
| PWR On Action | Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None | ||
| Park Time | 1-60mins available | ||
| Guard Tours | 3 groups | ||
| Guard Points | Max.16 points, dwell time user selectable | ||
| Operation menu | English etc | ||
| Pan and Tilt position display | Support | ||
| Auto Control IR LED | PWM | ||
| LEDs | Array 42Mil, 6 pieces IR LED | ||
| Lightning Protection | Transient voltage 6000V | ||
| IR distance | Up to 60 meters | ||
| Support ambient light detection | IR illumination on 1-9 grades selectable; | ||
| Operating temperature | Outdoor: -40°~ +60° | ||
| Operating Humidity | ≤95% Non Condensing | ||
| Power | DC12V 3A | ||
| Consumption | ≤15W | ||
| Ingress Protection | IP66 | ||
| Packing Case Size | 18.5cm x 18.5cm x 28.5cm/pcs(L*W*H) / 75.7cm x 38.5cm x 30.5cm/8pcs(L*W*H) | ||
| Weight | N.W 2.51KG/G.W 4.5KG | ||
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
Contact Person: Nancy
